Owis VAP 84-3 High Voltage Amplifier, 3 channels, Max.600V

Name: Owis VAP 84-3 High Voltage Amplifier, 3 channels, Max.600V
Brand: Owis
SKU: VAP 84-3
Price: 439.00 EUR
Availability: InStock

Product No.:: VAP 84-3
Shipping time:: 5-7 days (abroad may vary)
Stock:: 1 pieces
Condition:: Used

439,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Ask about product

Description

Description

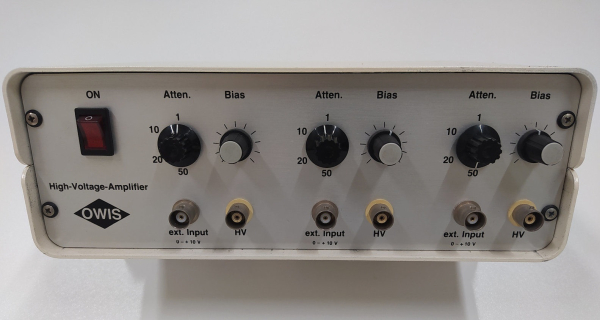

High Voltage Amplifier from Owis.
Contains three independent channels
Maximum output voltage 600 V.
Bias adjustable up to 450 V.
Amplification factor max. 50 - i.e. with the highest sensitivity, the 600 V output voltage is achieved with 12 V input voltage.
Switchable gain factors approx. 50, 7, 3.5 and 1.5.
It is a DC amplifier - only suitable for DC and slowly changing signals. At 50 Hz the output voltage drops by approx. 50%.
Low power amplifier - short-circuit current only approx. 20 mA.
Power connection cable is included.
