High-performance maritime VSAT communication system operating in the Ku-Band.
Fully automatic 3-axis antenna tracking (Roll, Pitch, Yaw) with EBF Gyro and 3D Gyro technology.
Designed for professional satellite Internet connections on vessels and offshore platforms.
Manufacturer Information
EPAK GmbH
Spinnereistraße 5a, 04179 Leipzig, Germany
Phone: +49 (0)341 490 285 0
Email: info@epak.de
Website: www.epak.de
Technical Specifications
Model: EPAK DSi9 KU-EVO
Part No.: DSi9KU-EVO
Features: Automatic 3-axis satellite tracking system for Ku-Band Internet
| Parameter |
Specification (Manufacturer) |
| Reflector Diameter |
90 cm (35.4 ") |
| Radome (D×H) |
114 × 140 cm (44.8 " × 55.1 ") |
| Weight |
approx. 65 kg (with radome) |
| RX Freq |
10.7 – 12.75 GHz (LOF 9.75/10.6) |

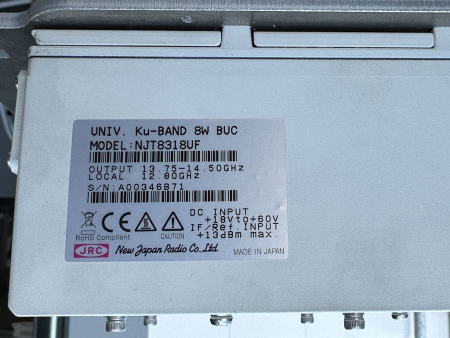

| TX Freq |
14.0 – 14.5 GHz / 13.75 – 14.5 GHz |
| Tracking Speed |
up to 30° / s each axis |
| Azimuth |
Unlimited |
| Elevation |
–10° to +90° |
| Skew |
± 120° Automatic |
| Power ODU |
24 V DC via ACU |
| Power ACU |
220 V AC / 50 Hz |
| Power Consumption |
20–40 VA (ODU only) |
| Operating Temp |
–20 °C to +55 °C |
| Lock On Time |
approx. 30 s |
| Compatibility |
EPAK Diversity Kit, DVB-S2 Modem / Airtime Service |
Condition: Used / Tested / Functional
Key Features
– Automatic satellite tracking with 3-axis servo control
– EVO System with EBF and 3D Gyro Sensors
– Compatible with EPAK Diversity Kit and ACU
– DVB-S2 automatic satellite identification
– Reliable Ku-Band broadband Internet connectivity at sea
– Rugged design for harsh marine environments
Applications
– Yachts & Cruise Ships
– Offshore Platforms and Research Vessels
– Merchant and Supply Ships
– Government & Defense Communication Systems
Notes
Condition: Used, tested and functional

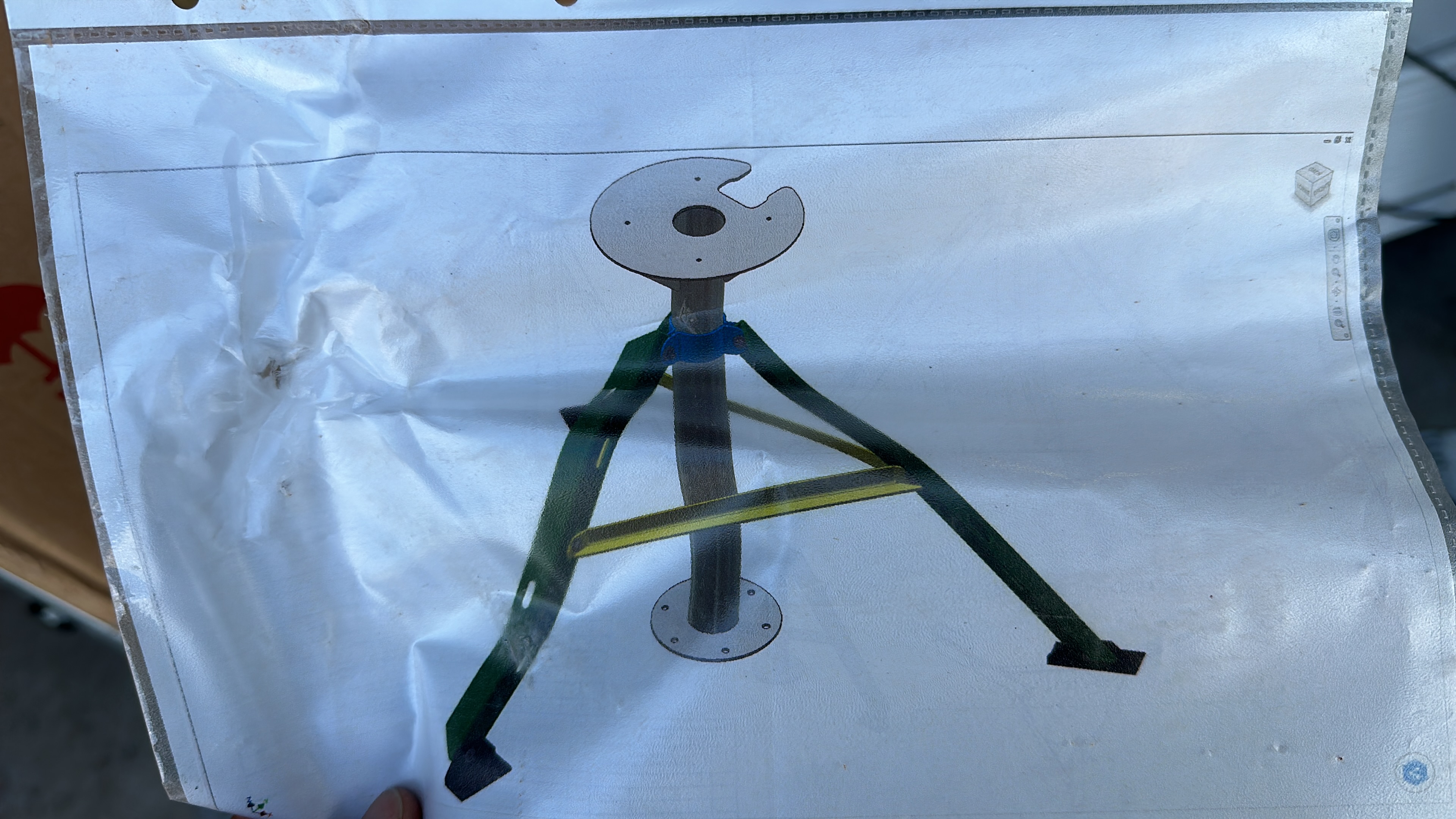

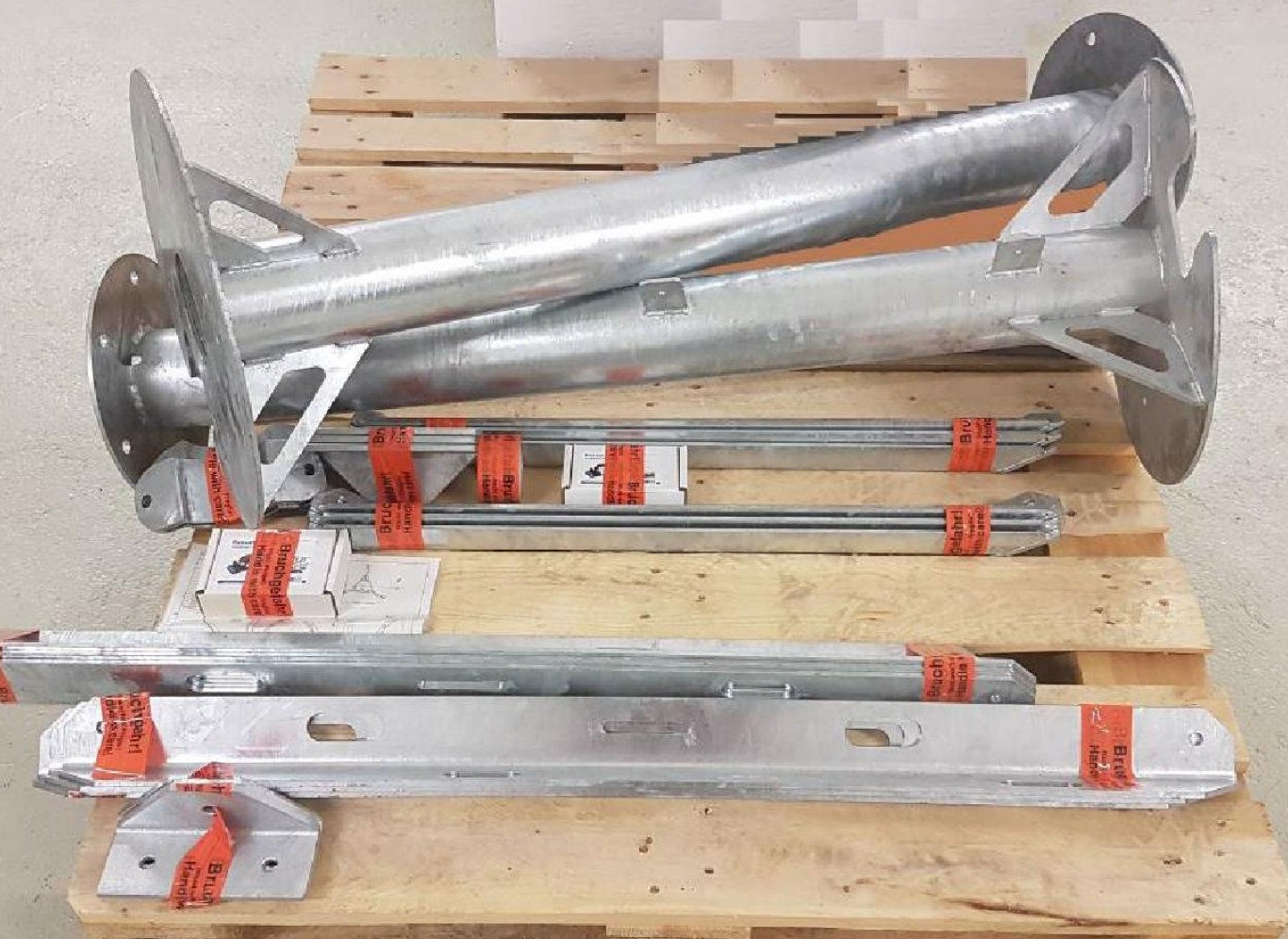

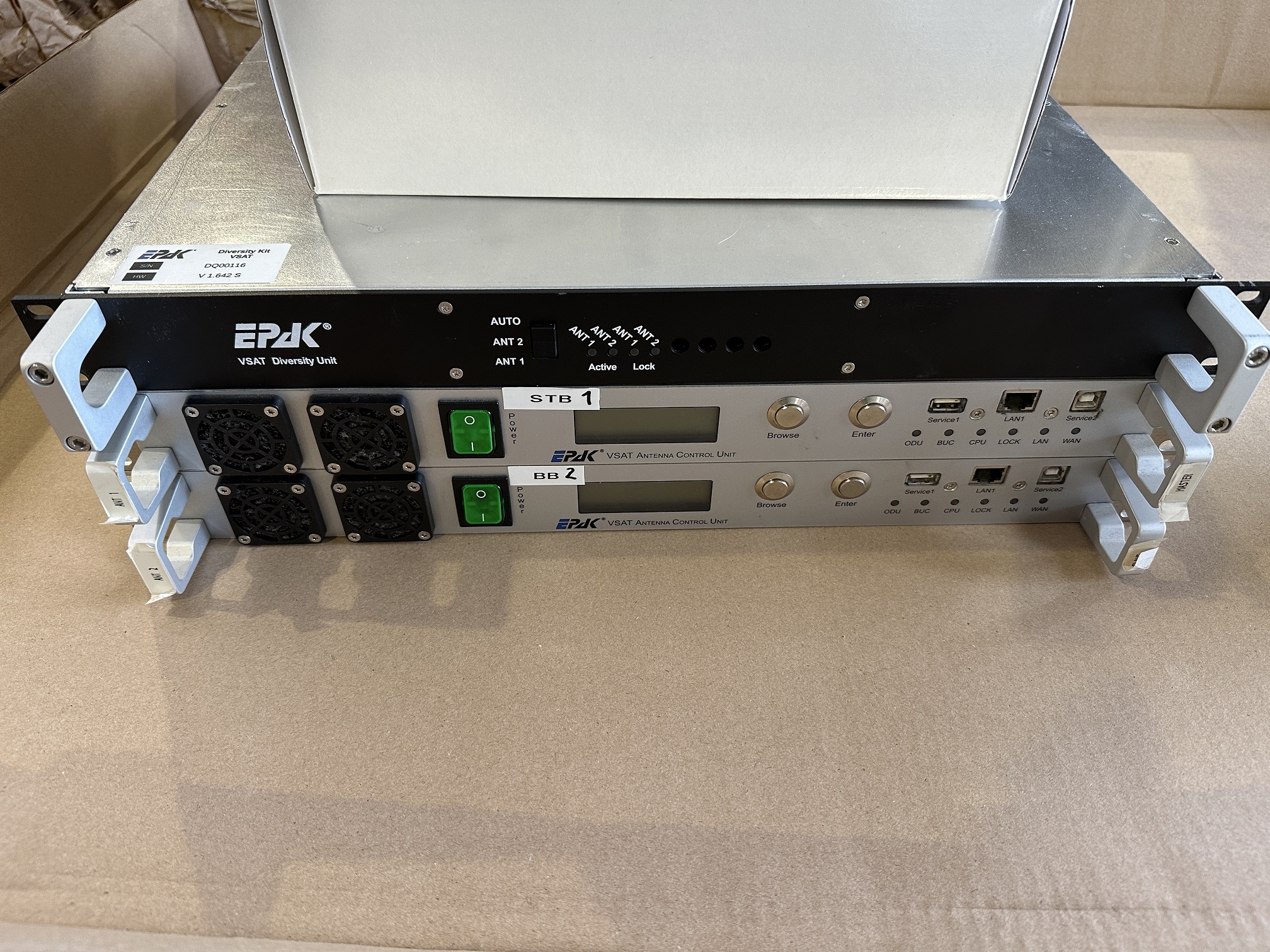

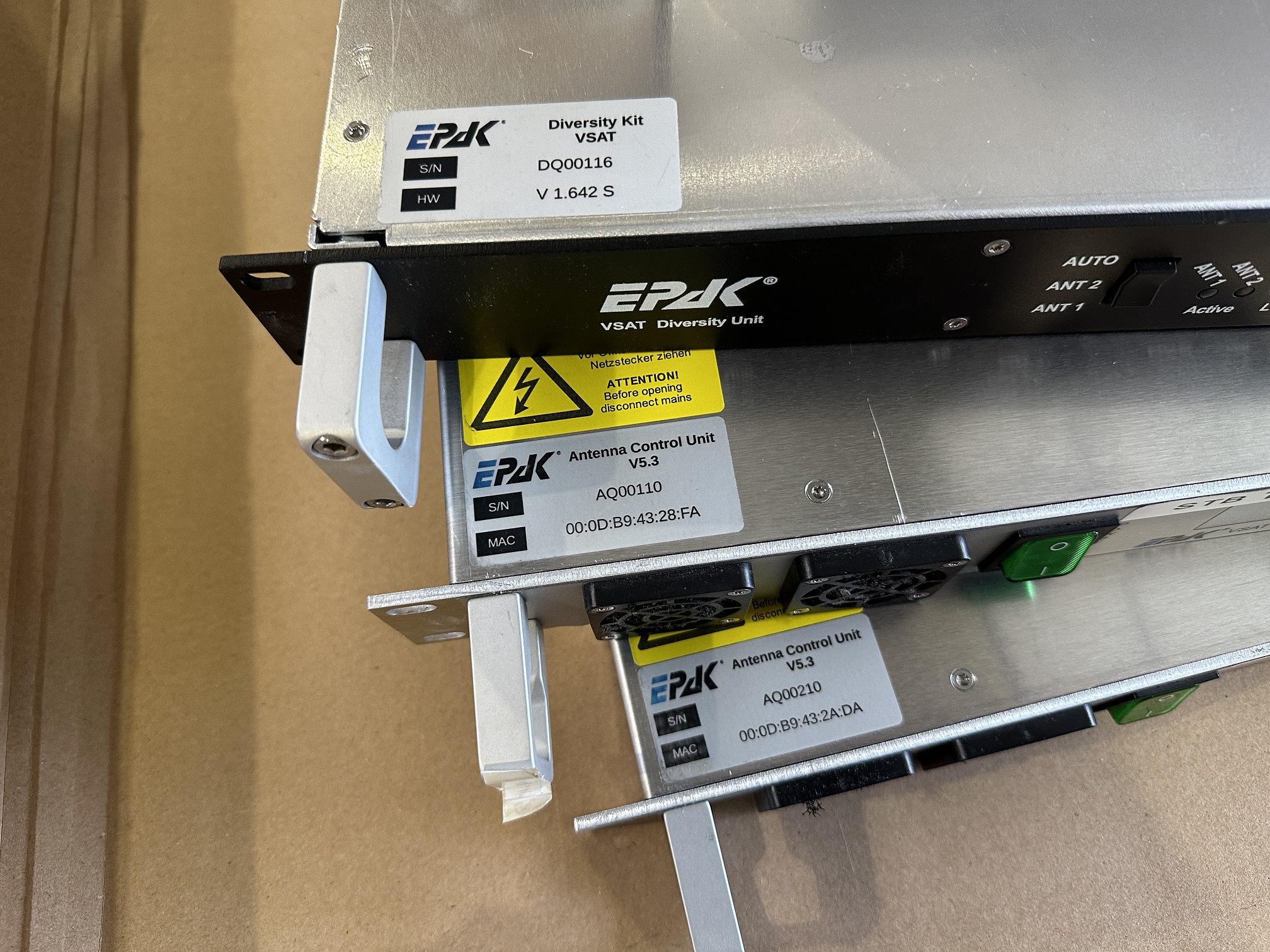

Included: 2× DSi9 KU-EVO Antennas, 2× ACUs, 1× Diversity Kit, 2× Tripods (unused)
Not Included: Cables and connectors
Shipping: Pick-up only (due to size and weight)
Installation: Professional installation recommended; requires UPS and EPAK-certified airtime service
