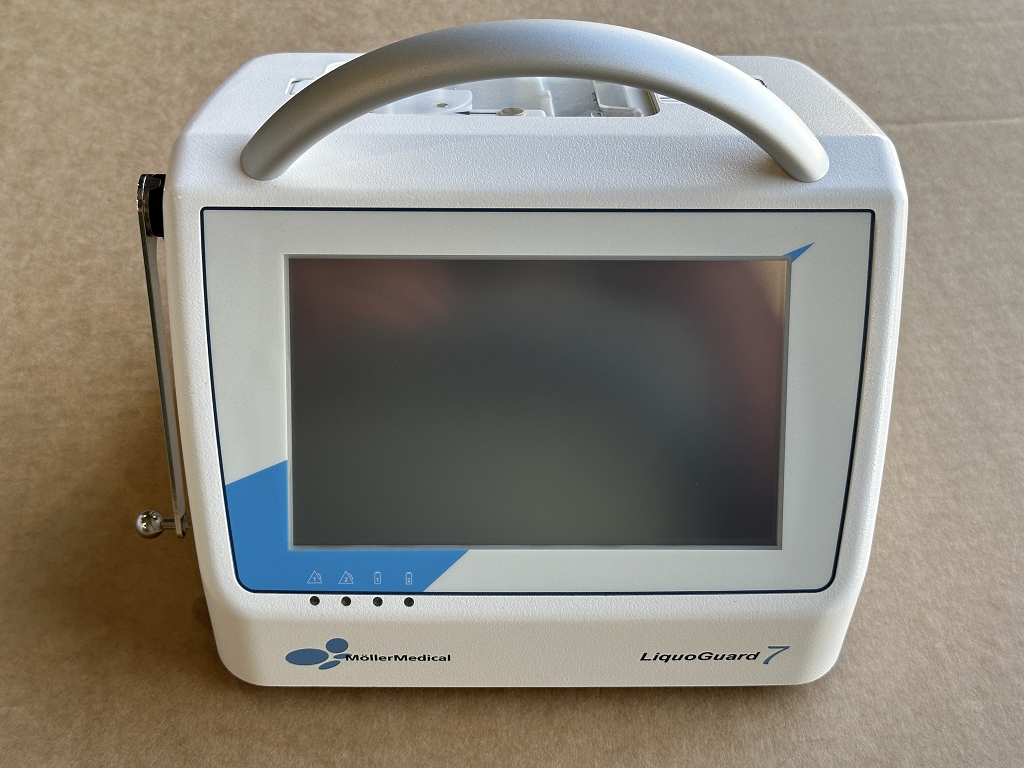

The LiquoGuard 7 is a fully automated system for continuous CSF drainage and pressure monitoring in neurosurgery and intensive care.
It regulates cerebrospinal fluid flow precisely and ensures maximum patient safety through advanced sensor technology.
Designed for monitoring intracranial pressure and controlled drainage in neurosurgical and cardiovascular applications.
Manufacturer Information
Möller Medical GmbH
Wasserkuppenstrasse 29–31
36043 Fulda, Germany
Phone: +49 661 83805-0
Email: info@moeller-medical.com
Website: www.moeller-medical.com
Technical Specifications
Model: LiquoGuard® 7
Part Number: 00003500
Features:
-
Automated CSF drainage system with pressure and flow control
-
Pressure range: –75 mmHg to +100 mmHg
-
Integrated pump and sensor for continuous monitoring
-

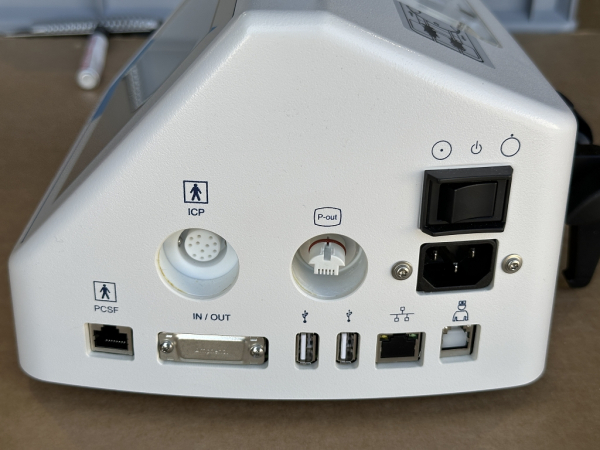

Interfaces: USB, patient monitor output, tip or parenchymal sensor port
-
Dimensions: approx. 238 × 145 × 213 mm / Weight: approx. 3.7 kg
-
Power supply: 100–240 V AC (50/60 Hz), internal battery ≈ 2 h operation
Condition: Used, tested, fully functional
Key Features
– Fully automated CSF drainage and pressure control
– Immediate alarm on over- or underdrainage
– Digital data logging and event recording
– Compact design for operating room and ICU use
– Enhanced patient safety and mobility
– Reliable German medical technology
Applications
– Neurosurgery after trauma or subarachnoid hemorrhage
– Intensive care monitoring of intracranial pressure
– Cardiovascular surgery (e.g. aortic and spinal operations)
– Medical research and clinical development
Notes
Condition: Used, tested, functional
Included: 1 × LiquoGuard 7 unit (Part 00003500), no disposables or sensors
Shipping: Worldwide shipping available
Installation: Qualified medical or biomedical personnel required
