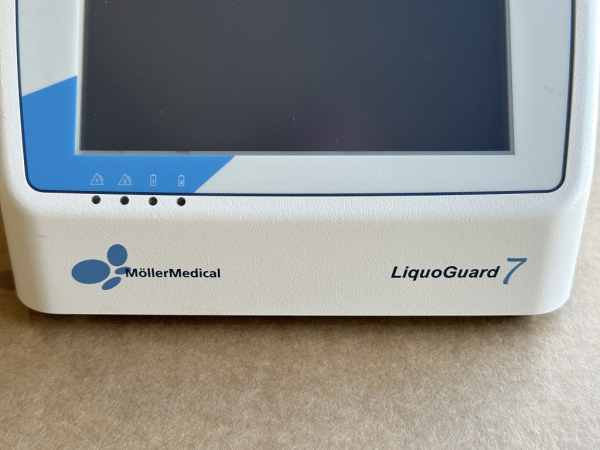

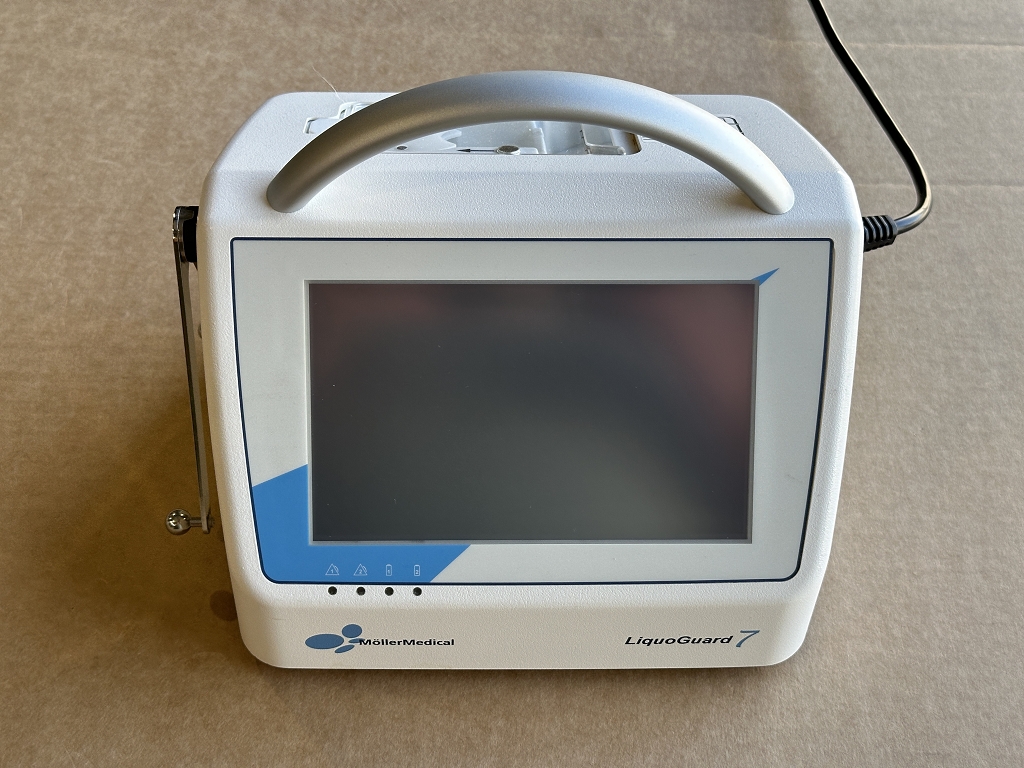

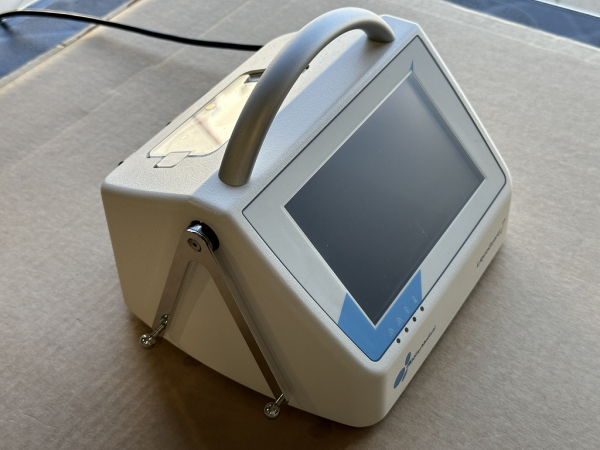

The LiquoGuard 7 is an advanced automated CSF drainage and pressure control system developed by Möller Medical GmbH.
It continuously measures intracranial and spinal CSF pressure and precisely regulates drainage to a defined setpoint.
Used in neurosurgery, intensive care units, and cardiovascular surgery, it provides safe and reliable cerebrospinal fluid management for clinical applications.
Manufacturer Information
Möller Medical GmbH
Wasserkuppenstrasse 29–31
36043 Fulda, Germany
Phone: +49 661 83805-0
E-mail: info@moeller-medical.com
Website: www.moeller-medical.com
Technical Specifications
Model: LiquoGuard® 7
Part Number: 00003500
Features:
-

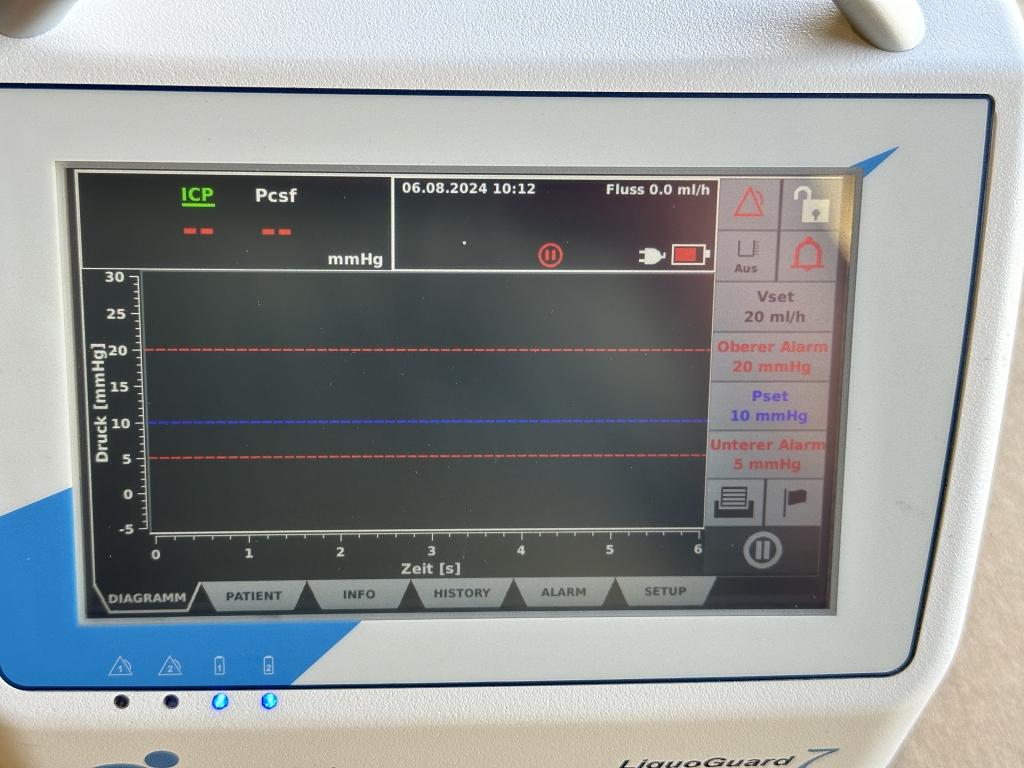

Automated CSF drainage with continuous pressure and flow monitoring
-
Pressure range: –75 mmHg to +100 mmHg
-

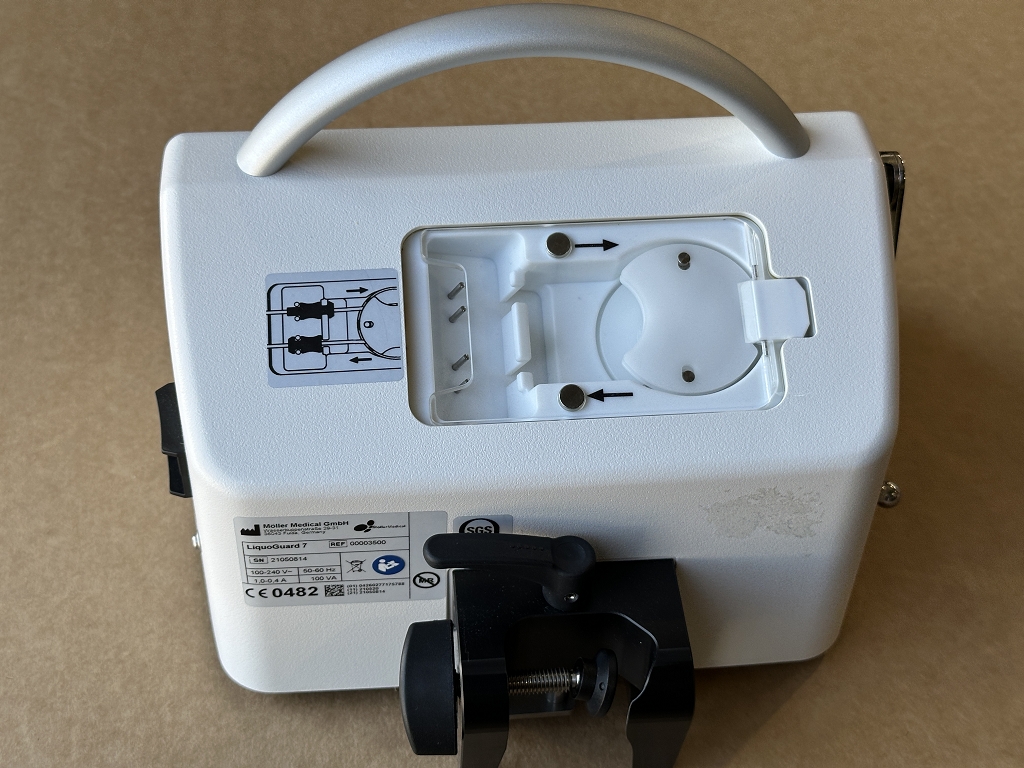

Integrated pump and sensor unit with digital control
-
Interfaces: USB, patient monitor output, parenchymal/tip sensor port
-
Dimensions: approx. 238 × 145 × 213 mm / Weight: 3.7 kg
-
Power supply: 100–240 V AC, battery operation ≈ 2 hours
Condition: Used, tested, fully functional
Key Features
– Fully automated CSF drainage management
– Integrated alarms for occlusion and pressure deviation
– Continuous digital data logging and safety monitoring
– Compact and lightweight design for ICU and OR settings
– Proven Möller Medical technology for reliable clinical performance
Applications
– Neurosurgery (CSF drainage post trauma or surgery)
– Intensive care monitoring of intracranial pressure
– Cardiovascular surgery (thoracoabdominal aneurysm procedures)
– Medical research and clinical development
Notes
Condition: Used, tested, functional
Included: 1 × LiquoGuard 7 unit (00003500), no disposable kits or sensors
Shipping: Worldwide shipping available
Installation: Qualified biomedical or clinical personnel required
