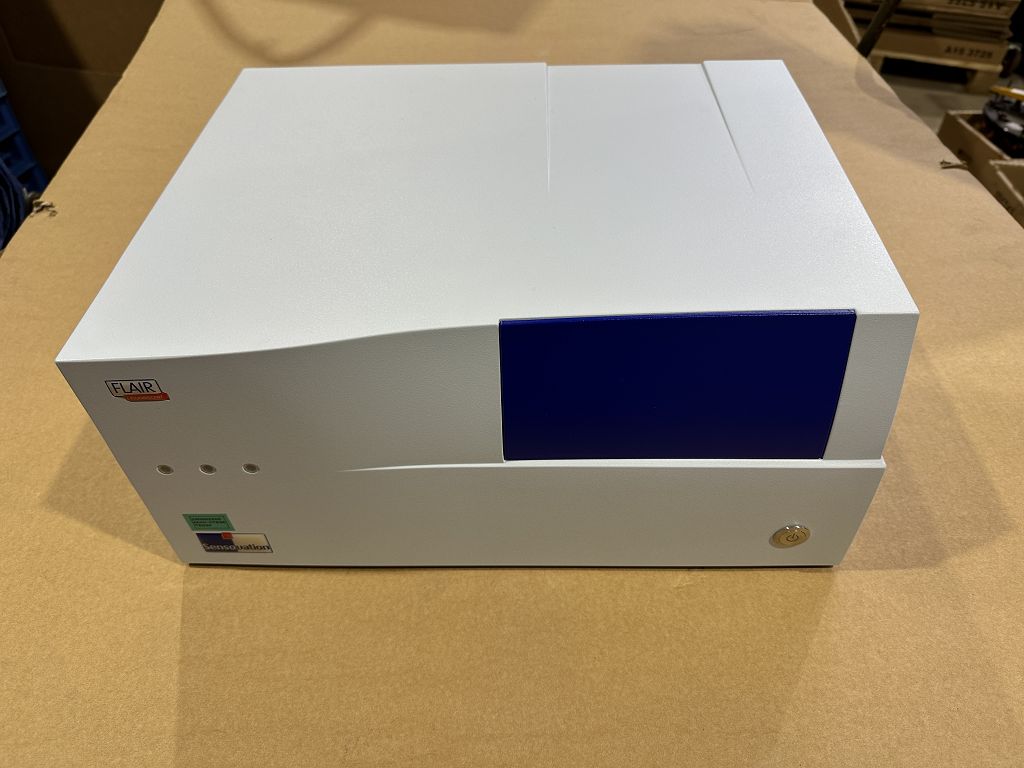

The Sensovation Flair blue/red is a high-performance fluorescence array reader and scanner with a touchscreen interface, designed for bio-analytics, clinical diagnostics, and life science research.
It combines 6.7 µm/pixel resolution, multi-LED excitation (blue/green/red), and scan times below 3 minutes per 96-well plate, ensuring maximum precision and reproducibility.
Manufacturer Information
Sensovation AG
Markthallenstraße 5
78315 Radolfzell am Bodensee
Germany
Phone: +49 7732 9403-0
E-mail: infoRAD@miltenyi.com
Website: www.sensovation.de
Technical Specifications

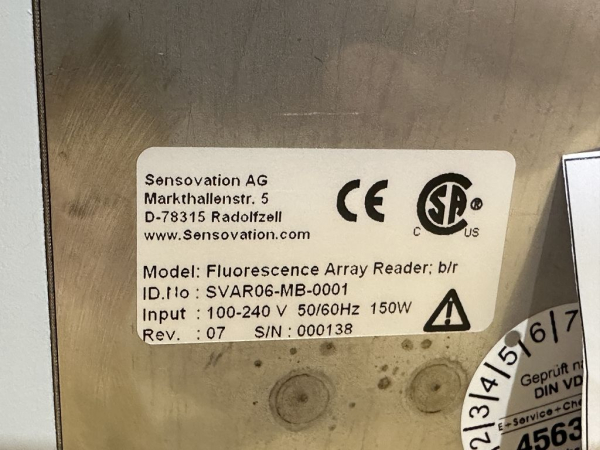

Model: Flair blue/red
Part Number: SVAR06-MB-001
Manufacture Date: 08 Oct 2013

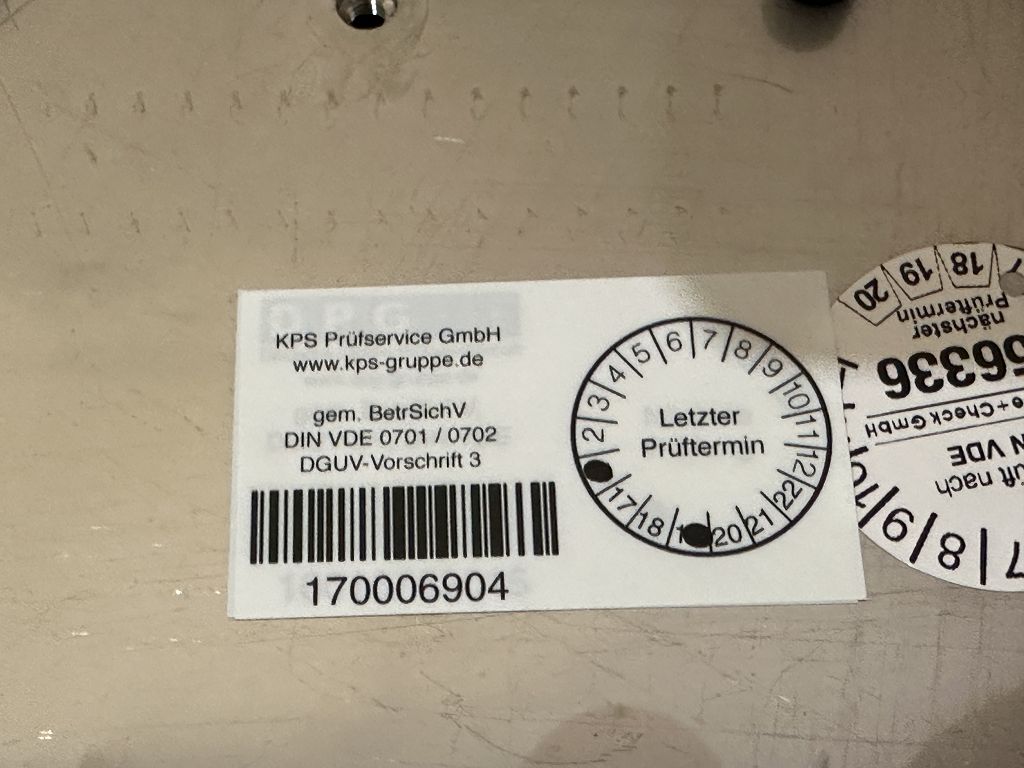

Last Inspection: Jan 2019
Features:
-
Sample Resolution: 6.7 µm/pixel
-
Scan time for 96-well plate: < 3 min + integration time
-
Image format: 16-bit TIF, 8-bit TIF
-
Excitation: High Power LED (~ 60 mW)
-
LED colors: blue, green, red
-
Sample holder: SBS format microplates or adapter for 4 slides
-
Dimensions: W 440 mm × D 340 mm × H 210 mm
-
Weight (without touchscreen): 15 kg
Condition: new, unused (stored instrument)
Key Features
– High-resolution multi-LED fluorescence scanner (blue/green/red)
– Scan speed under 3 minutes per 96-well plate
– Compatible with slides and SBS microplates
– Robust design “Made in Germany”
– Touchscreen interface for intuitive operation
– Ideal for multiplex assays and biochip applications
Applications
– Research and diagnostic laboratories
– Microarray and biomarker analysis
– Pharmaceutical and biotech screening
– Academic life science and bio-research institutions
Notes
Condition: new, unused, functional

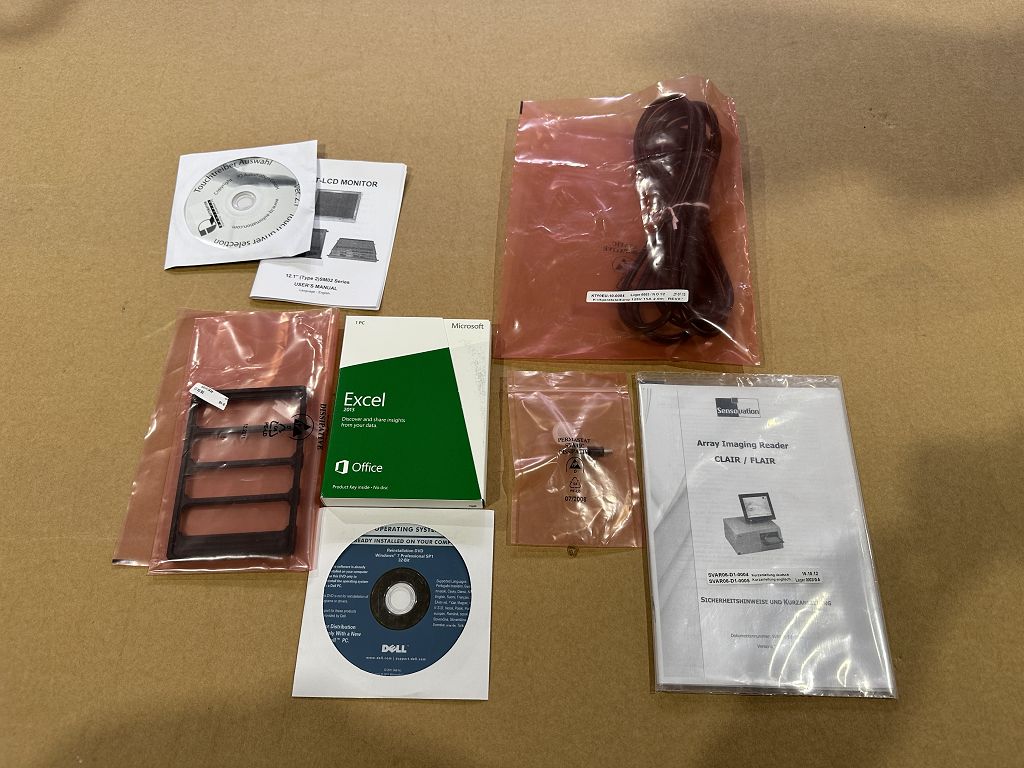

Included: Sensovation Flair blue/red Array Reader with Touchscreen (no consumables)

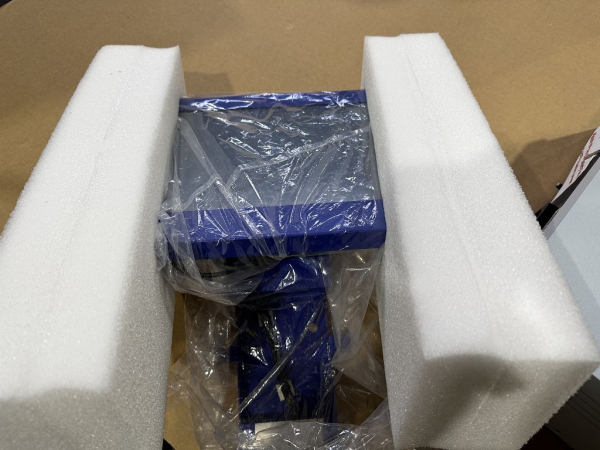

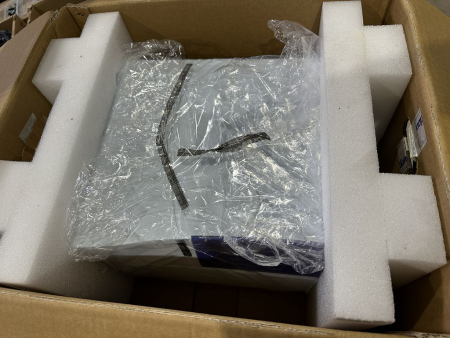

Shipping: worldwide available, securely packed
Installation: performed by qualified technical personnel recommended
