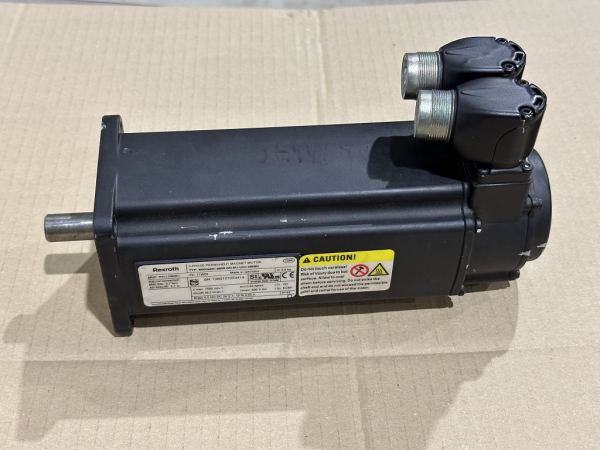

The Bosch Rexroth 3-Phase Synchronous PM Motor type MSK040C-0600-NN-M1-UG1-NNNN is an industrial servo motor designed for precise motion control and automation systems. The motor is clearly identifiable via part number R911306061 and the type designation MSK040C-0600-NN-M1-UG1-NNNN.
The motor includes an integrated 24 V holding brake with 4.00 Nm braking torque and is designed for inverter duty operation (VPWM). With IP65 protection, natural convection cooling and a maximum speed of 7500 rpm, the motor is suitable for demanding industrial servo and automation applications.
Manufacturer details
Bosch Rexroth AG
Zum Eisengießer 1
97816 Lohr am Main
Germany
Phone +49 9352 405060
E-Mail info@boschrexroth.de
Website www.boschrexroth.com
Technical specifications
-
manufacturer: Bosch Rexroth AG
-
product name / product type: 3-phase synchronous PM motor / servo motor
-
model / type: MSK040C-0600-NN-M1-UG1-NNNN
-
part number (P/N): R911306061
-
factory code: FD 20W22
-
motor series: MSK040C
-
weight: 3.9 kg
-
cooling: natural convection
-
rated torque M0: 2.7 Nm
-
current I0: 3.1 A
-
holding brake torque: 4.00 Nm
-
brake voltage: DC 24 V ±10 %
-
brake current: 0.50 A
-
back EMF constant KE(eff): 58.2 V / 1000 rpm
-
torque constant Km: 0.95 Nm/A
-
maximum speed: 7500 rpm
-
maximum voltage: AC 600 V
-
protection class: IP65
-
temperature class: 155
-
insulation system: ECM1
-
inverter duty: VPWM
-
origin: Made in Germany
-
condition: used
Key features
-
genuine Bosch Rexroth synchronous motor MSK040C-0600-NN-M1-UG1-NNNN
-
clear identification via part number R911306061
-
integrated 24 V holding brake with 4.00 Nm
-
industrial servo motor with IP65 protection
-
designed for inverter operation (VPWM)
-

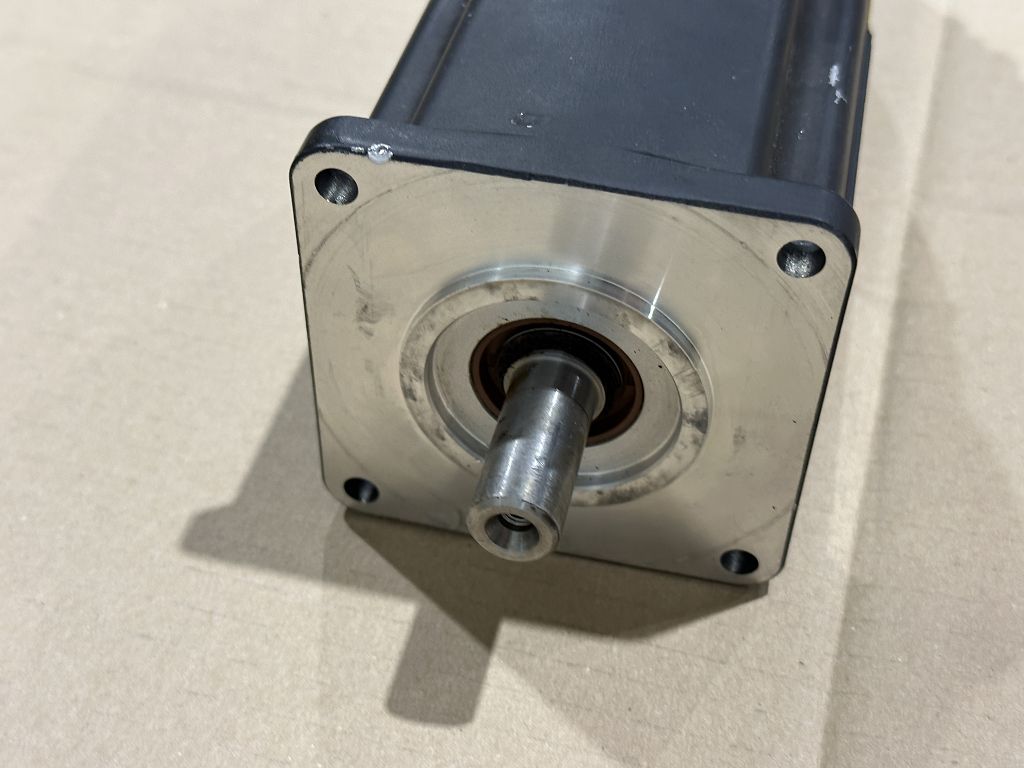

compact flange mounted industrial design
-
robust construction for automation systems
-
suitable OEM replacement motor for maintenance
Typical applications
-
industrial automation systems
-
CNC machinery and manufacturing equipment
-
servo positioning axes
-
robotics and motion control
-
production and handling systems
-
machine building and special machinery
-
industrial maintenance operations
-
replacement in existing servo drive systems
Notes
Condition: used
Scope of delivery:
Delivery includes the shown Bosch Rexroth synchronous motor MSK040C-0600-NN-M1-UG1-NNNN with part number R911306061.
Shipping:

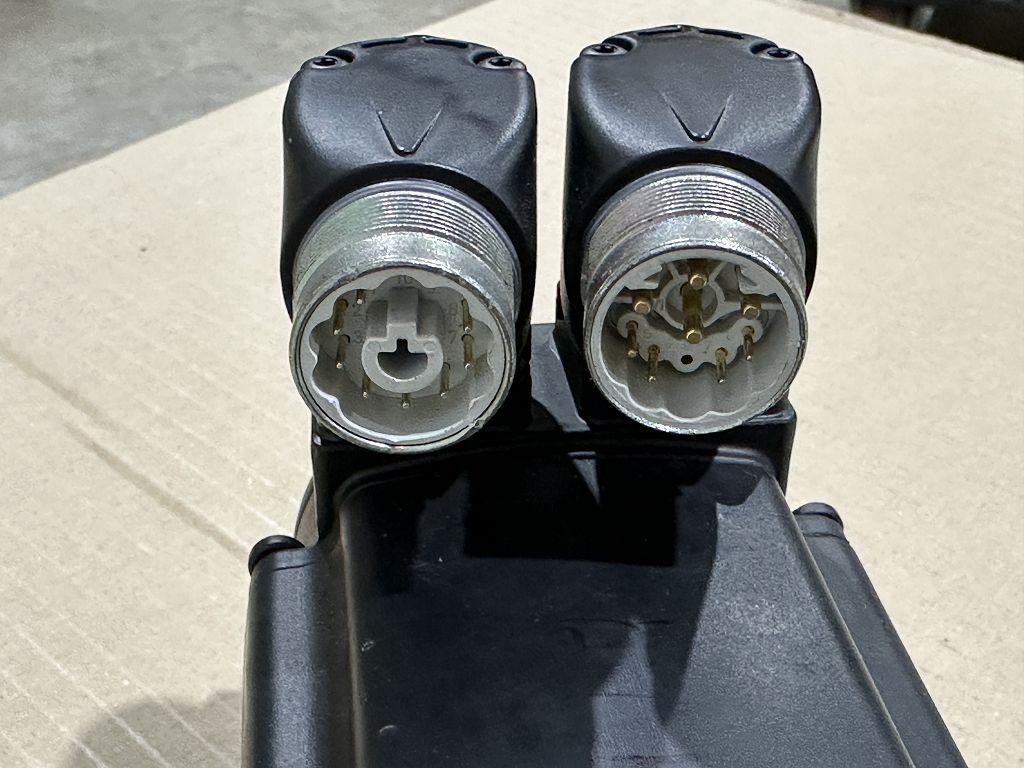

The motor will be securely packaged for shipment. Shaft and connectors will be protected during transport.
Installation / safety:
Installation and electrical connection must be carried out by qualified technical personnel. Verify compatibility with the intended drive system before commissioning.
