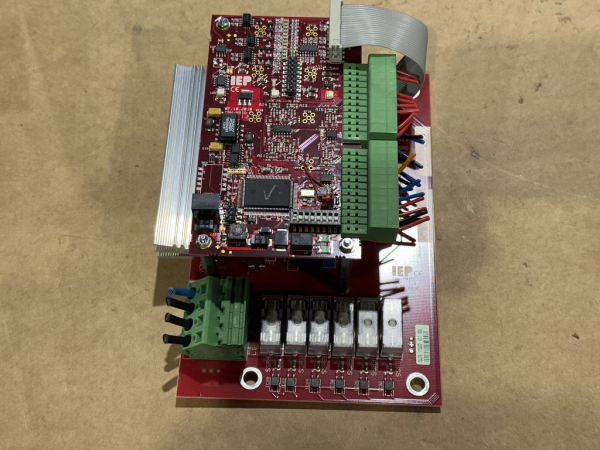

IEP CAN-M3IO – I/O Module / Control Board (used)

The IEP CAN-M3IO is an industrial input/output module designed for extending machine controllers and automation systems via the CAN-Bus protocol. Featuring solid-state relay outputs, analog/digital inputs, screw terminal connectors and a multilayer PCB design with integrated DC-DC converter, this module offers reliable performance in demanding industrial environments.

It serves as an excellent replacement or expansion module for machine builders, robotics engineers and maintenance teams working with CAN-based control architectures.

Manufacturer Information

KSG GmbH
Auerbacher Str. 3–5
09390 Gornsdorf
Germany

Phone: +49-3721-266-0
Fax: +49-3721-266-101
E-Mail: info@ksg-pcb.com
Web: https://www.ksg-pcb.com/

(Note: PCB is internally marked “IEP CE.”)

Technical Specifications

• Model: CAN-M3IO

• Revision levels observed:

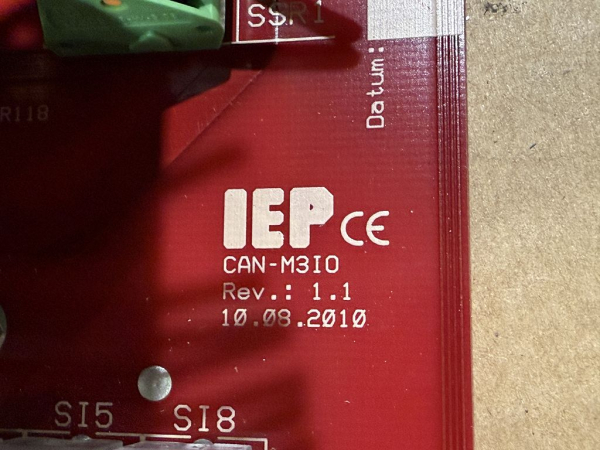

  • Rev. 1.1 – 10.08.2010

  • Rev. 1.2 – 07.10.2010

• Bus system: CAN-Bus

• Components / connectors:

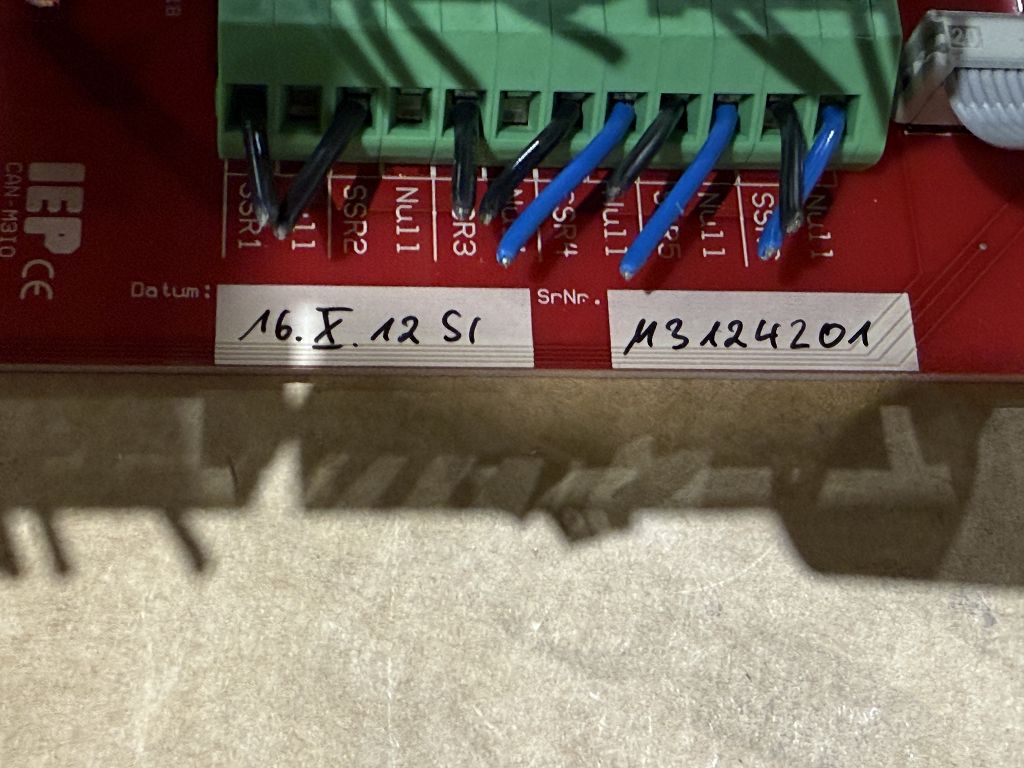

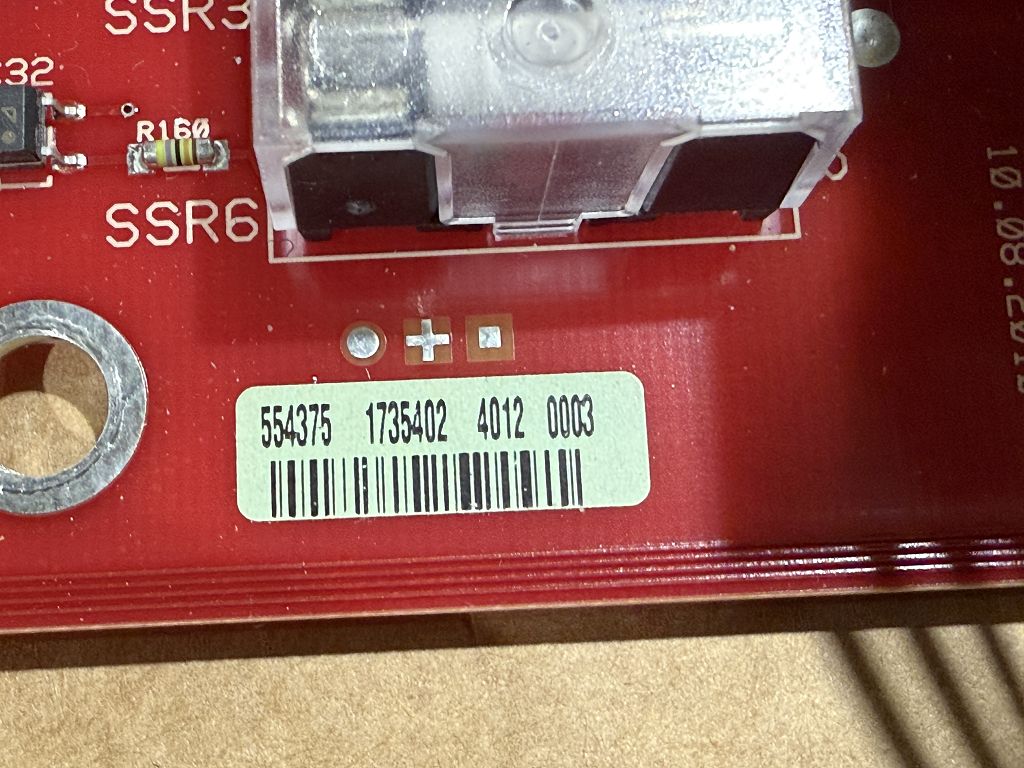

  • Solid-state relays: SSR1–SSR6

  • Analog/digital inputs: AI1–AI4, SI5, SI8 etc.

  • Multiple screw terminal blocks

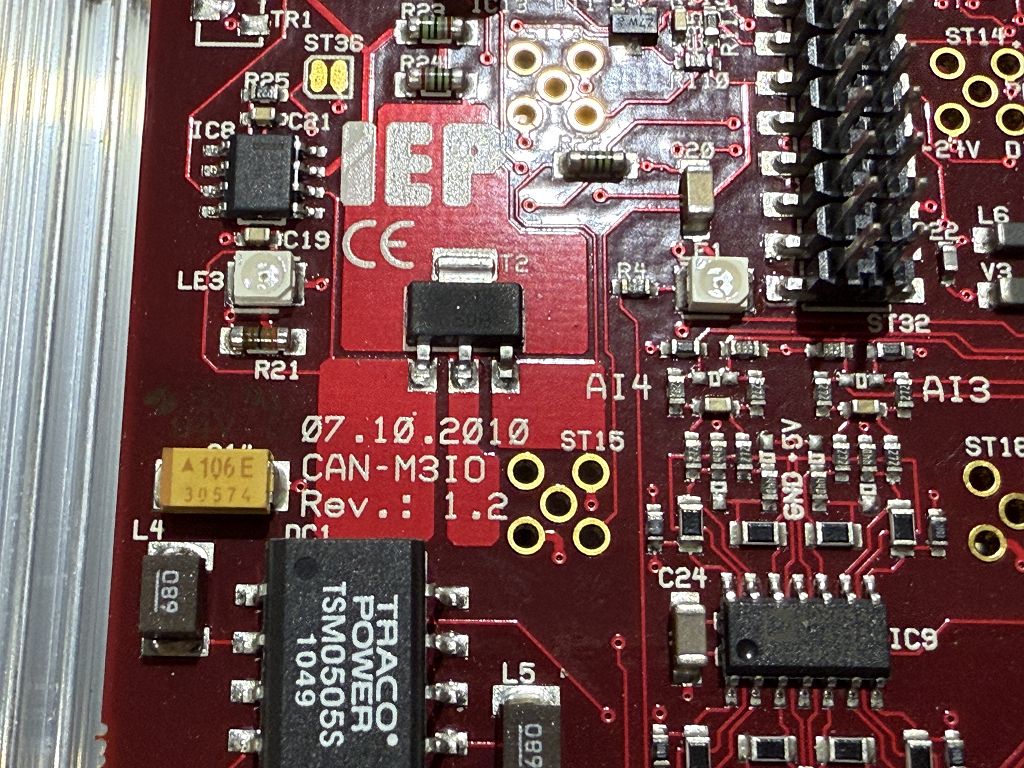

  • TRACO POWER TSM0505S DC-DC converter

  • Integrated heatsink

  • Connector interface for daughterboard

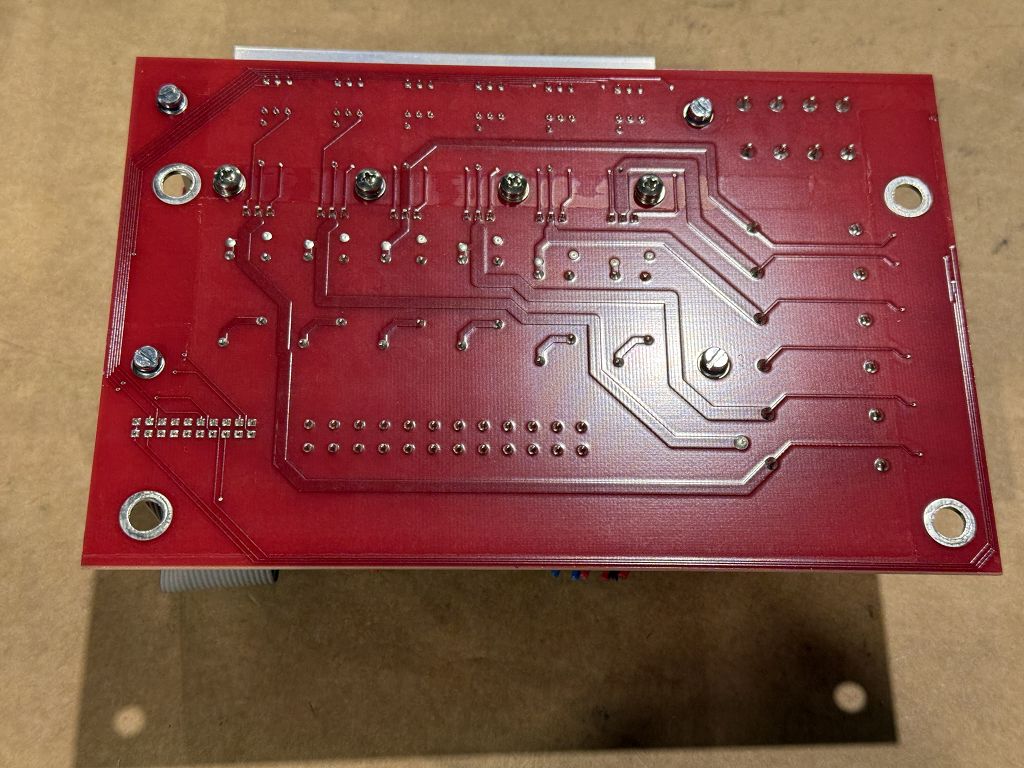

• PCB: Red multilayer design with stacked module

• Condition: used

Key Features

• Industrial CAN-Bus I/O expansion module

• Multiple SSR outputs for reliable switching

• Clearly marked analog and digital channels

• Maintenance-friendly screw terminals

• Stable voltage management via DC-DC converter

• Ideal for repairs, upgrades and retrofit projects

Application Areas

• Industrial automation

• Robotics

• Machine control systems

• Process automation

• Modernization of legacy systems

• Spare-part replacement for CAN controllers

Notes

• Condition: used, visually checked

• Delivered as shown

• Installation by qualified personnel only
