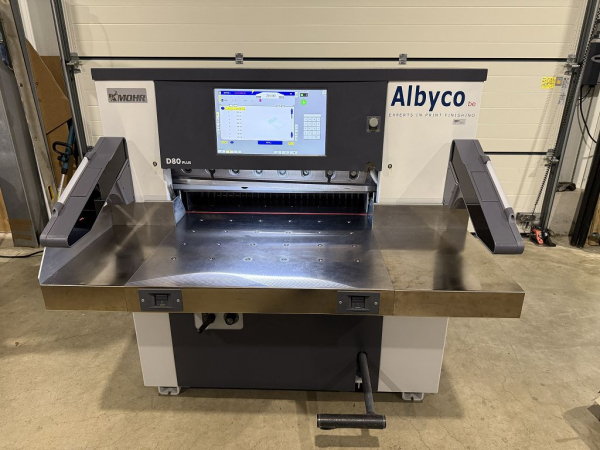

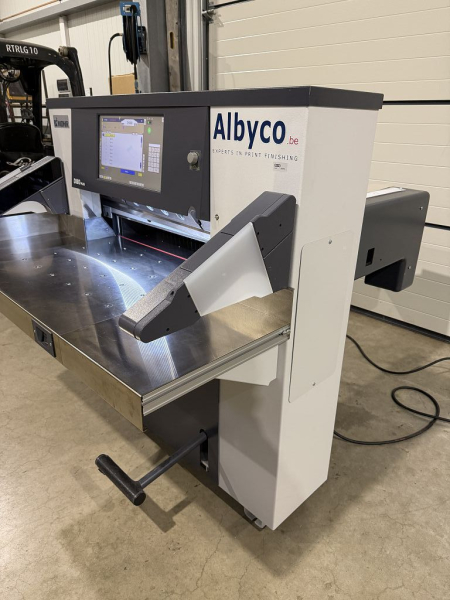

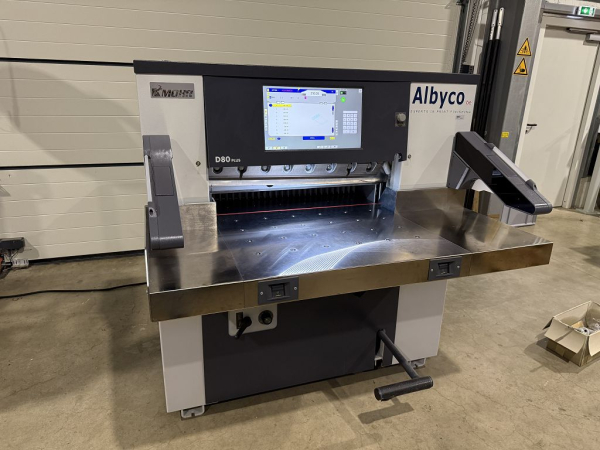

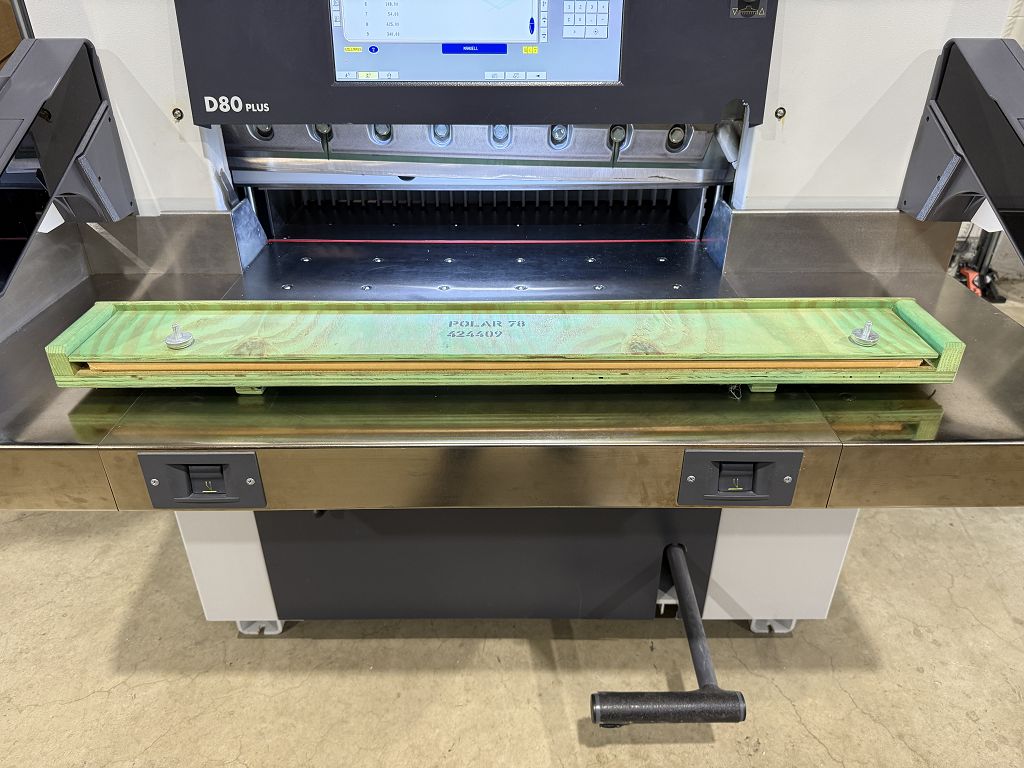

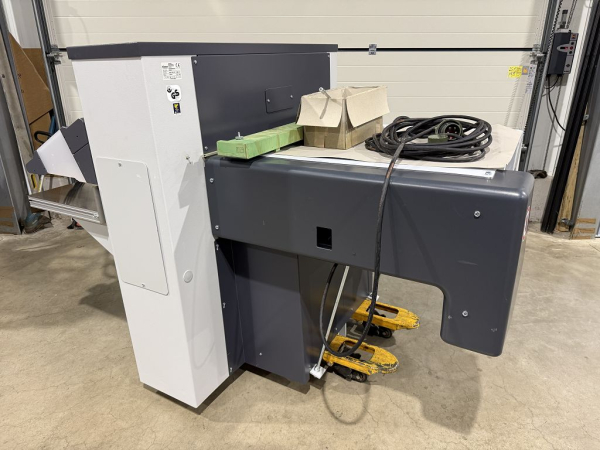

The MOHR POLAR D 80 PLUS cutting machine M080-20 is a professional hydraulic cutting system designed for precise industrial cutting applications. Model M080-20 with serial number 89N1160, built in 2020, shows a low usage level of only 24,551 cuts. Equipped with an 18.5" touchscreen and process visualization, it ensures accurate and efficient operation. Typical use cases include printing, finishing, and industrial cutting environments.
Manufacturer details
Heidelberg Postpress Deutschland GmbH
Gutenbergring 19
69168 Wiesloch
Germany
Phone +49 6192 204-0
E-Mail info@polar-mohr.com
Website https://www.polar-mohr.com
Technical specifications
- Manufacturer: MOHR / POLAR
- Product name / product type: cutting machine / hydraulic cutting machine
- Model / type: MOHR D 80 PLUS / M080-20
- Part number (P/N): M080-20
- Serial number (S/N): 89N1160
- Year of manufacture: 2020
- Cutting width: 800 mm
- Feeding depth: 800 mm
- Max. insertion height: 100 mm
- Clamping pressure: 180–2700 daN
- Residual cut without cover plate: 15 mm
- Residual cut with cover plate: 50 mm
- Return speed: 70 mm/s

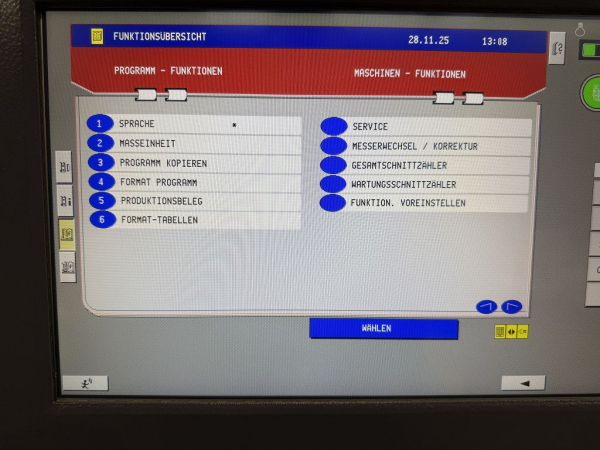

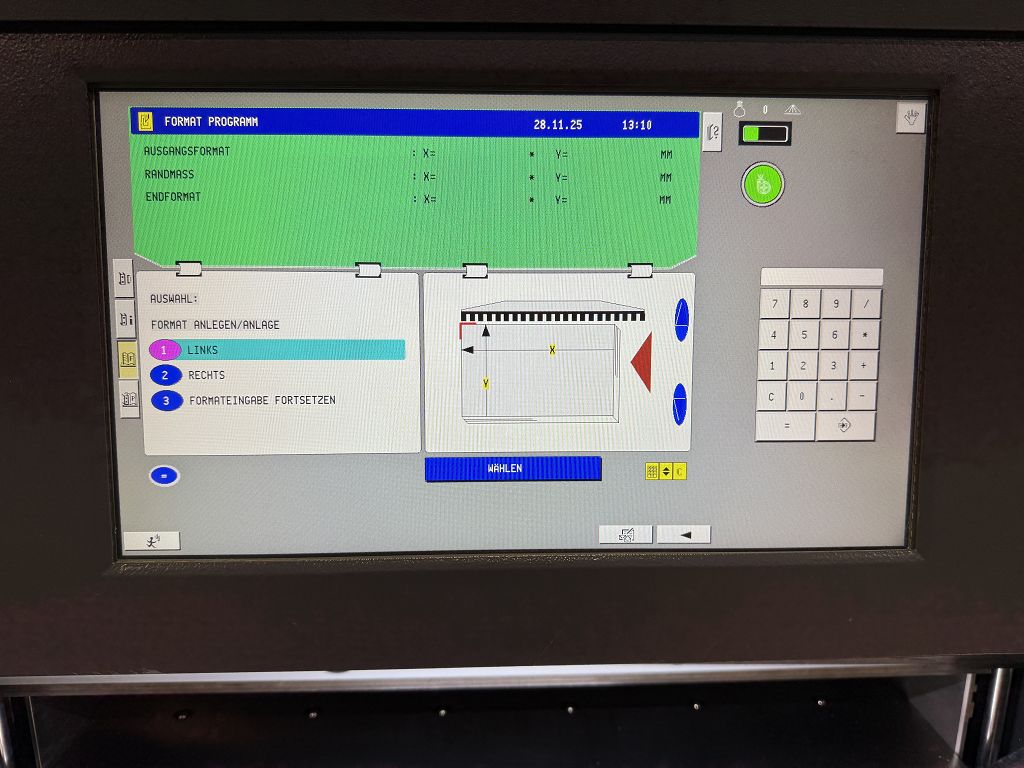

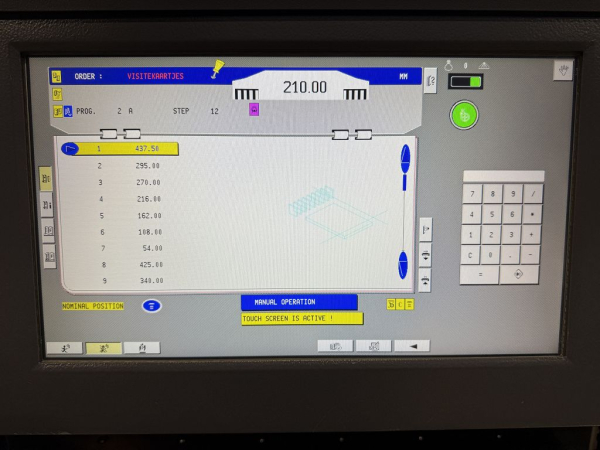

- Control system: 18.5" touchscreen
- Program memory: 1,998 jobs

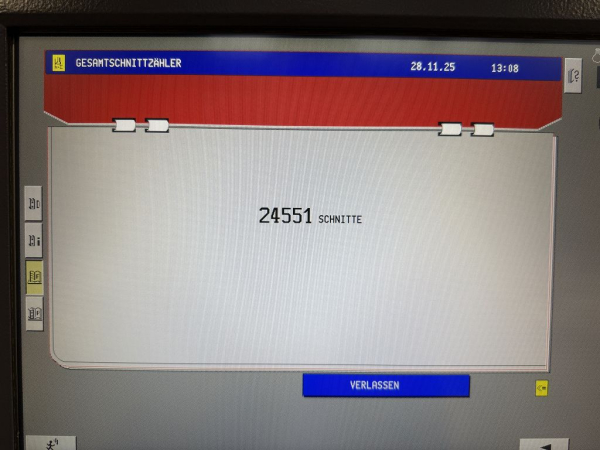

- Total cuts: 24,551
- Power consumption: 4.0 kVA
- Power supply: 400 V / 50 Hz / 2.6 A
- Table: stainless steel with air support
- Weight: 900 kg
- Knives:
- 1× installed POLAR 78

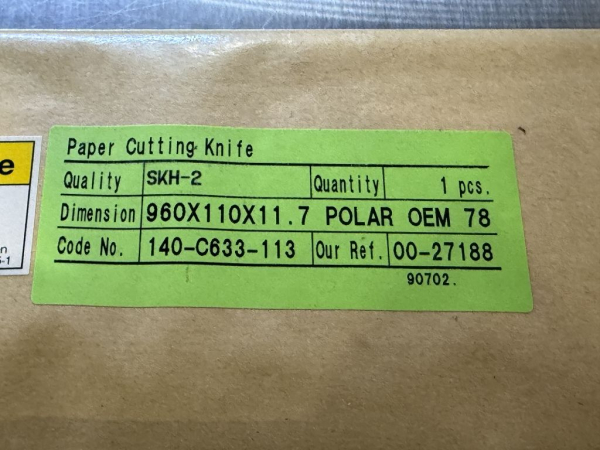

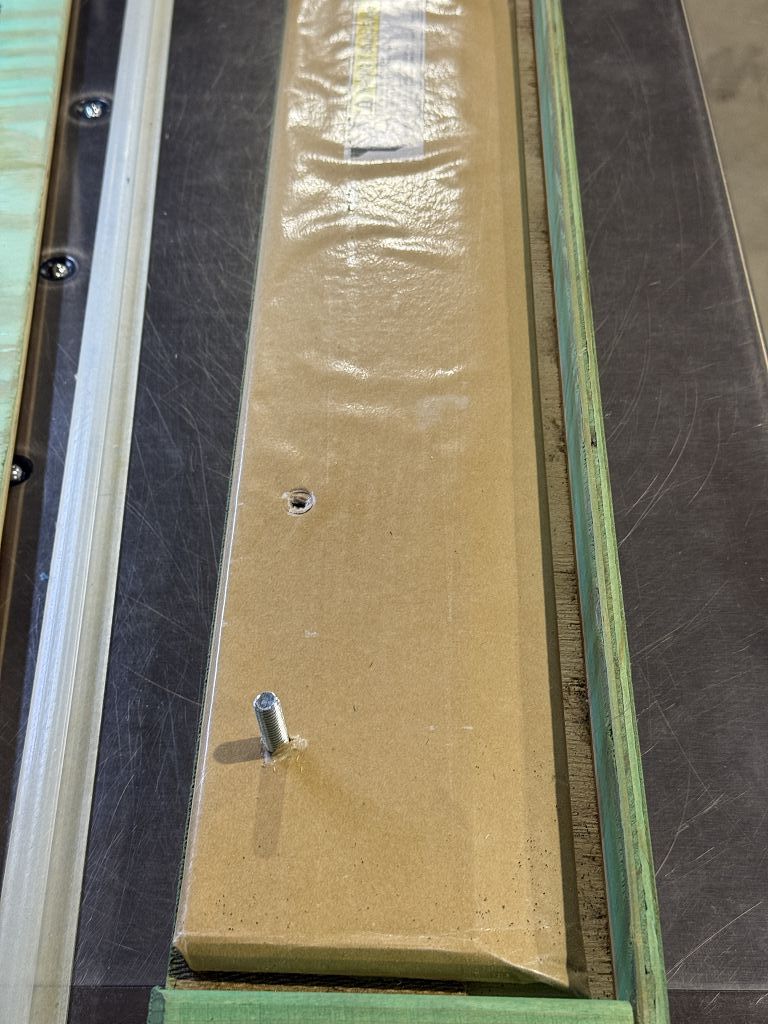

- 1× new POLAR 78 SKH-2, 960×110×11.7 mm
- Condition: used, very good working condition
Key features
- genuine POLAR industrial cutting machine
- clearly identifiable via model M080-20 and serial number 89N1160
- low usage with only 24,551 cuts
- hydraulic swing cut system for high precision
- integrated process visualization
- air table for smooth material handling

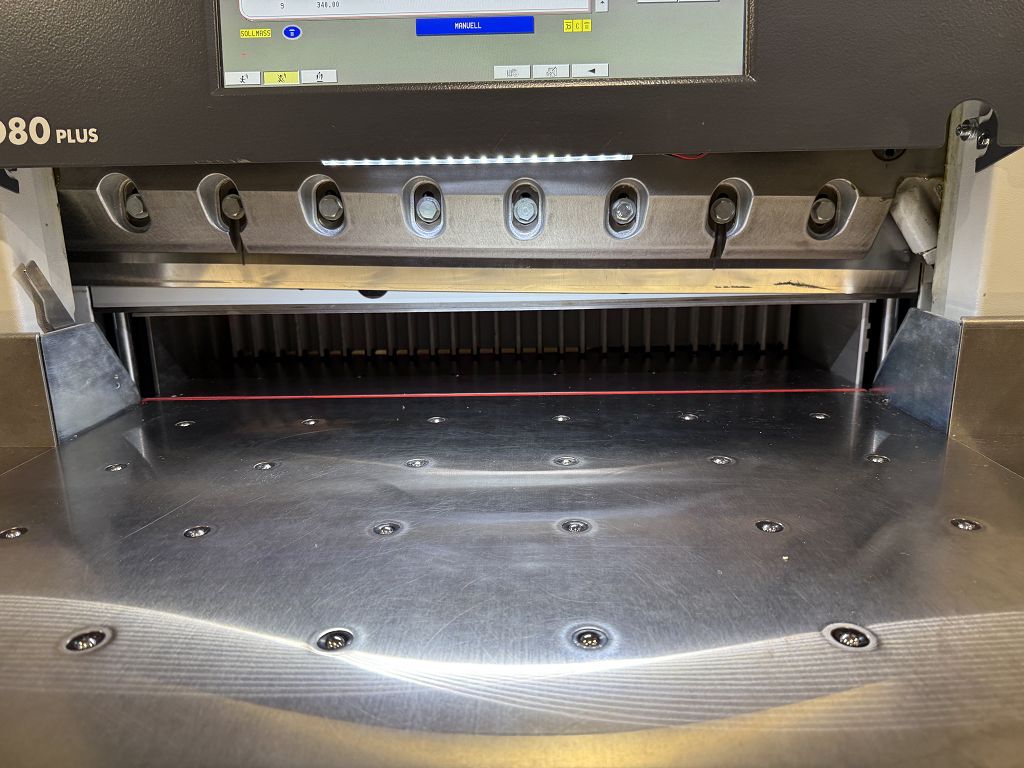

- LED cutting line indicator
- fast knife change system POLAR OptiKnife
Typical applications
- industrial printing (offset & digital)
- finishing and bookbinding
- print-on-demand production
- label and business card production
- processing of paper and cardboard
- industrial cutting operations
- spare part integration
- maintenance and system upgrades
Notes
- condition: used, tested and fully functional
- scope of delivery: cutting machine M080-20, cables, installed knife, new spare knife POLAR 78 SKH-2
- shipping: pickup only, professional handling required
- installation: must be carried out by qualified personnel
- weight: 900 kg – lifting equipment required
