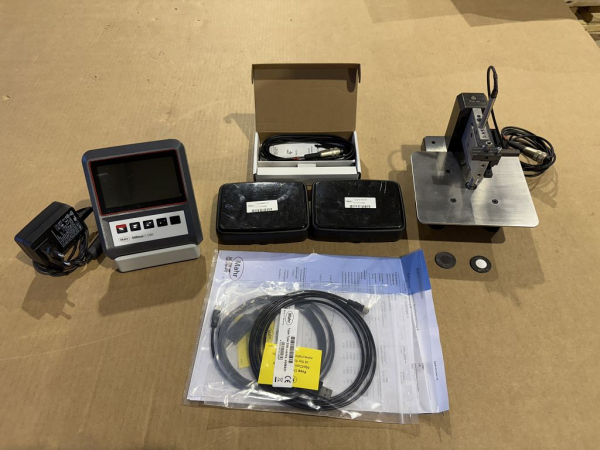

Mahr Height Measuring Device – Complete System with P2004M Probe, BM50 Measuring Block & Millimar C1200 (Used)

This industrial-grade height measuring system includes a Mahr inductive probe P2004M, a BM50-05 measuring block, a precision measuring fixture, and the Mahr Millimar C1200 compact length measurement unit.
The equipment comes directly from the Volkswagen (VW) quality department, fully functional, accurately maintained, and ready for immediate use.

Ideal for precision measurement, dimensional inspection, quality control, and metrology applications in professional industrial environments.

Manufacturer Information

Mahr GmbH
Carl-Mahr-Straße 1
D-37073 Göttingen, Germany
Phone: +49 551 70730
Email: info@mahr.com
Website: https://www.mahr.com

Technical Specifications

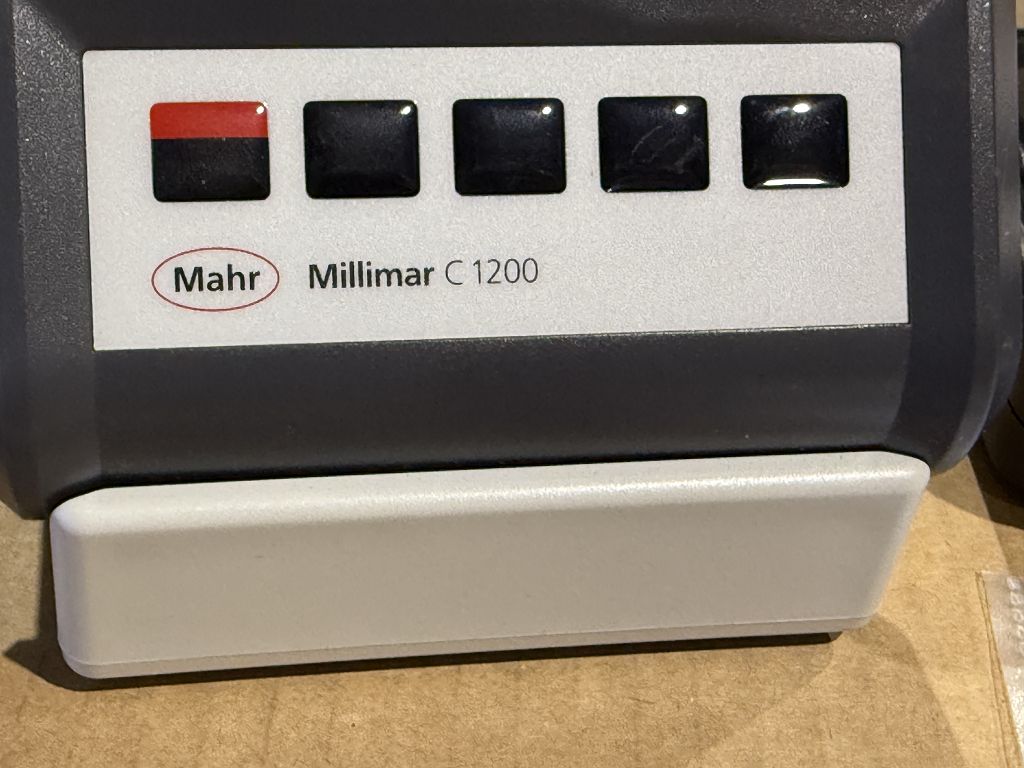

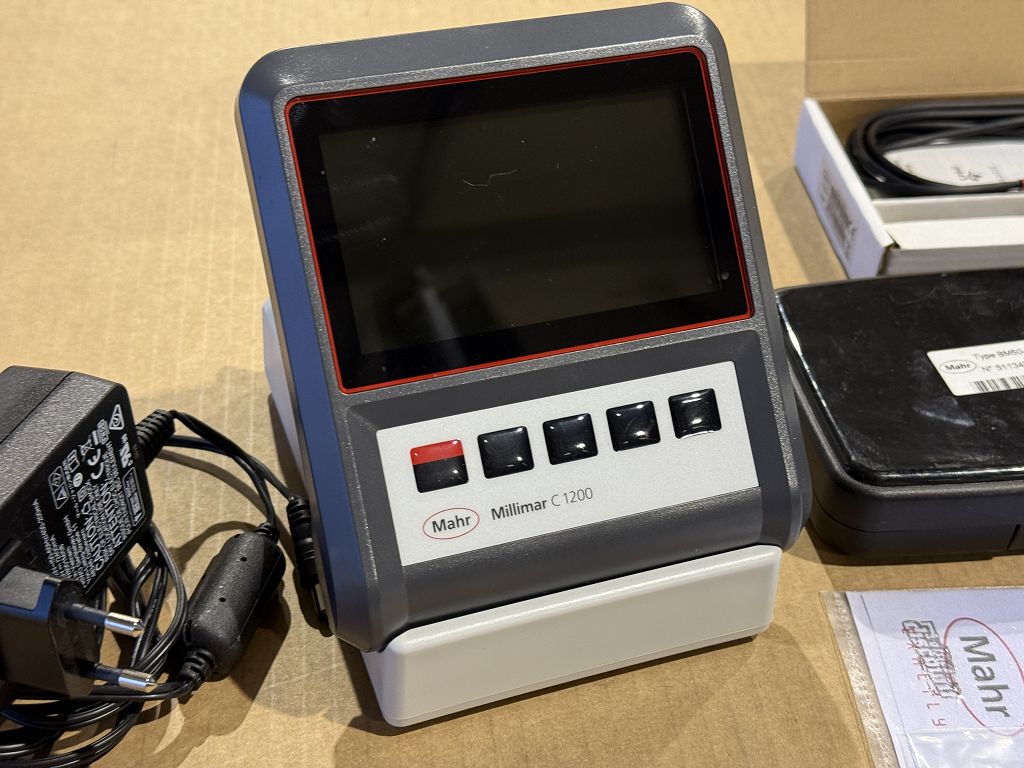

1. Compact Length Measuring Unit – Mahr Millimar C1200

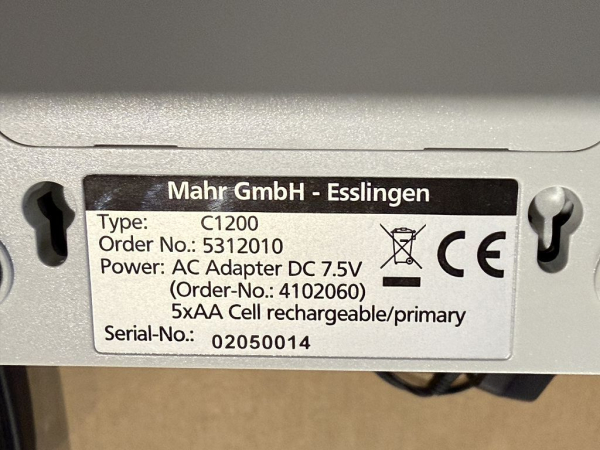

• Type: C1200

• Order No.: 5312010

• Power Supply: AC Adapter DC 7.5 V (Order-No. 4102060) / 5× AA Cells

• Serial No.: 02050014

• Purpose: Digital display and evaluation unit for inductive probes

• Resolution: High-precision micrometer range

• Condition: Used, tested, fully functional

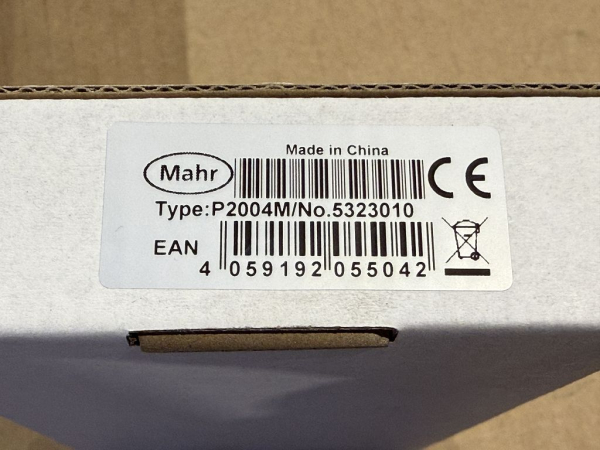

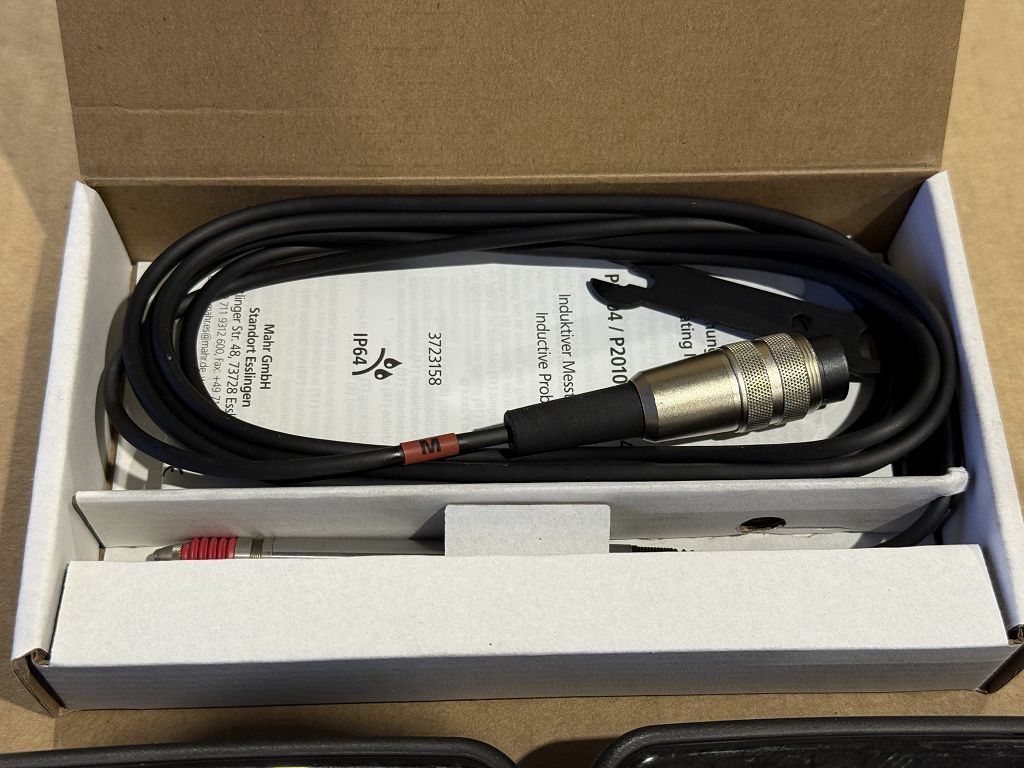

2. Inductive Measuring Probe – Mahr P2004M

• Type: P2004M

• Order No.: 5323010

• Measuring Range: ±2 mm

• Resolution: 0.0001 mm

• Protection Rating: IP64

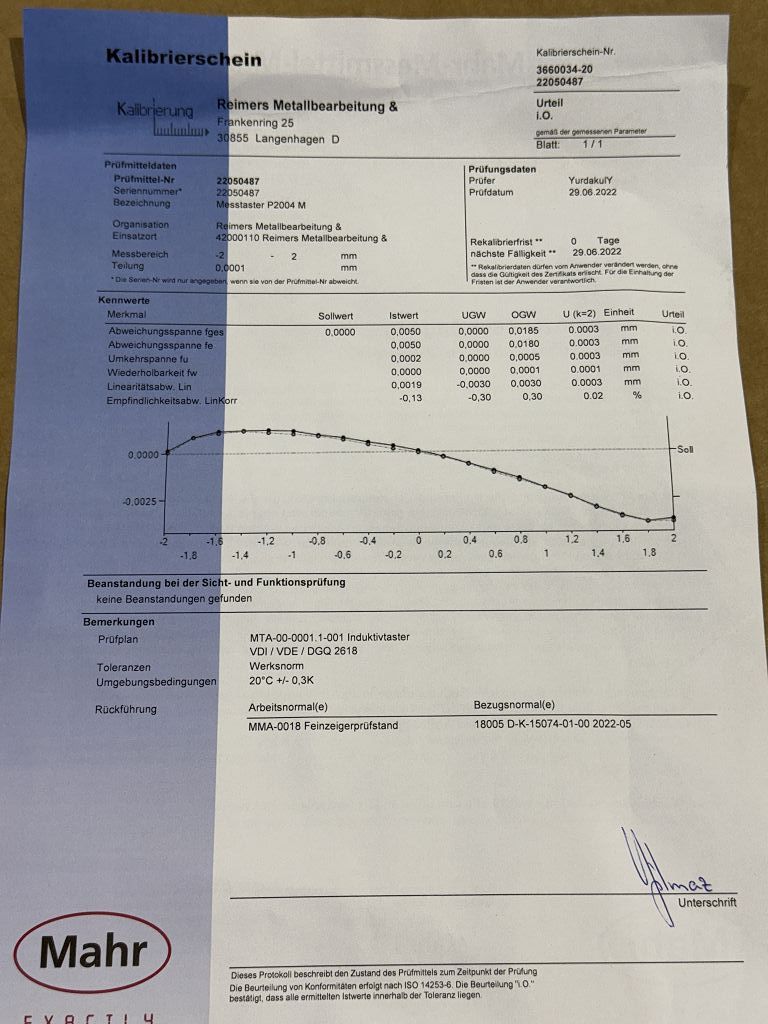

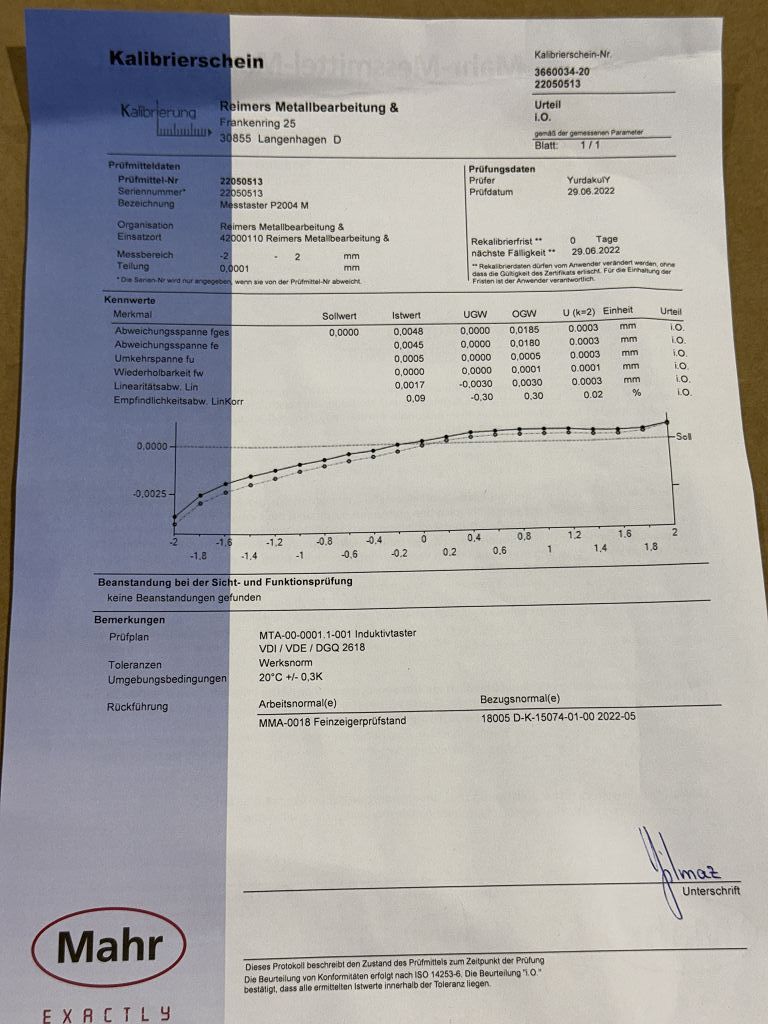

• Calibration Date: 29 June 2022 (certificate included)

• Condition: Excellent working condition

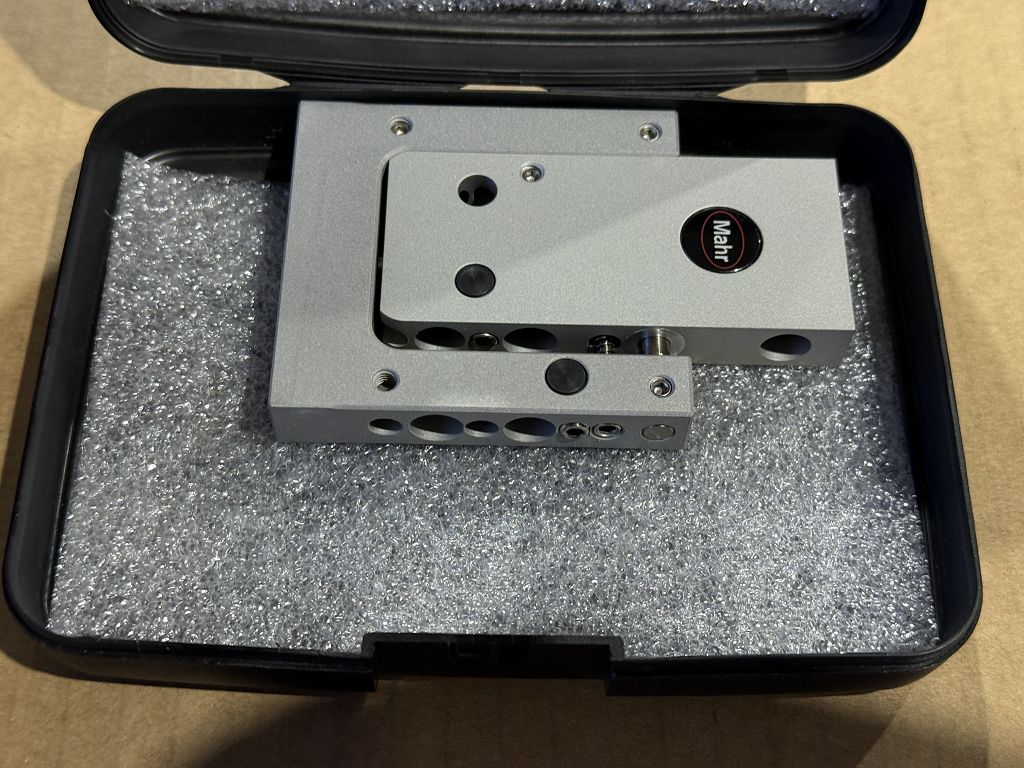

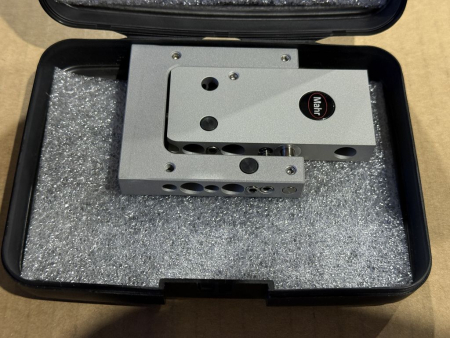

3. Measuring Block / Measuring Element – Mahr BM50 / BM50-05

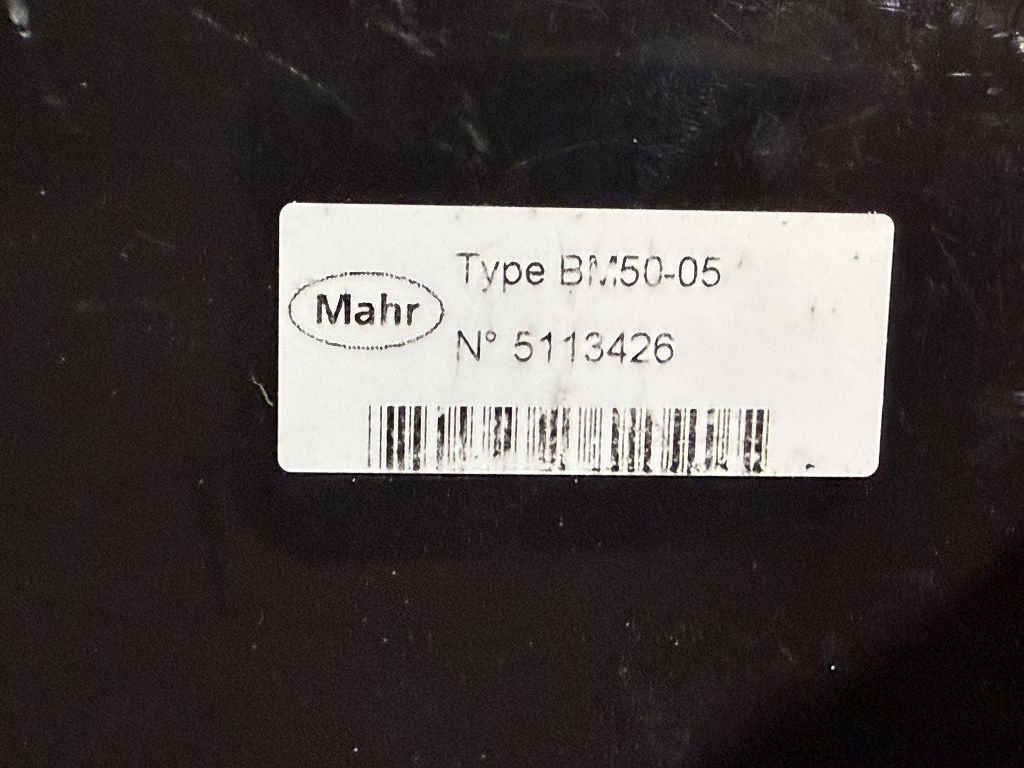

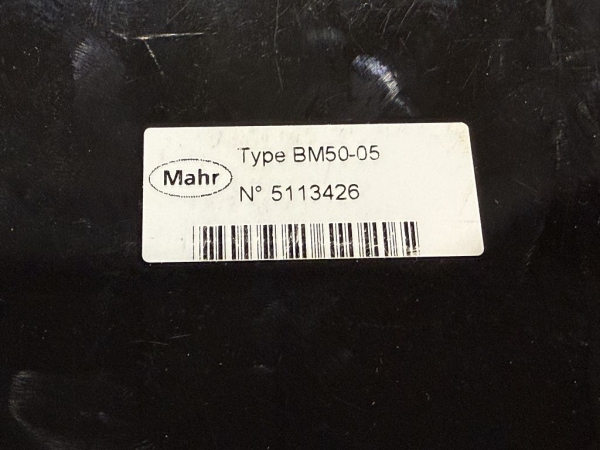

• Type: BM50-05

• Serial No.: 5113426

• Application: Precision block for length and height measurements

• Material: High-grade steel/aluminium

• Condition: Mechanically perfect

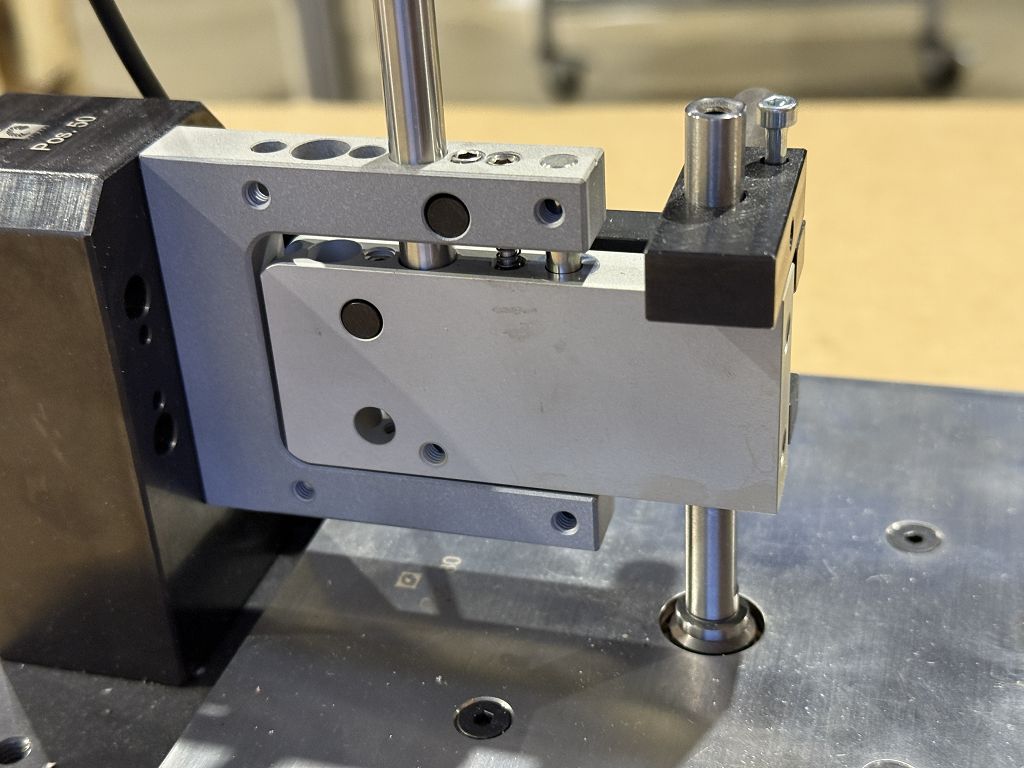

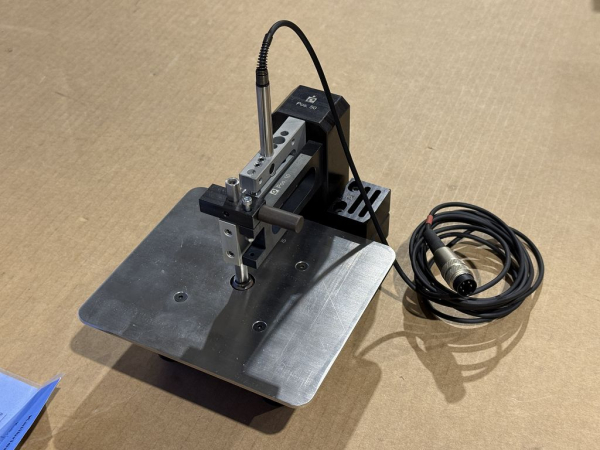

4. Height Measuring Fixture / Precision Stand

• Robust aluminium & steel construction

• Stable measuring table with mounting points

• Smooth vertical guide movement

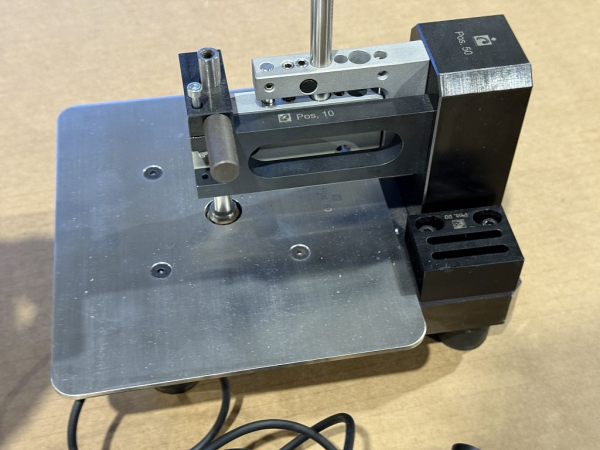

• Probe mounting system with position markers (Pos. 10, Pos. 50, etc.)

• Includes:

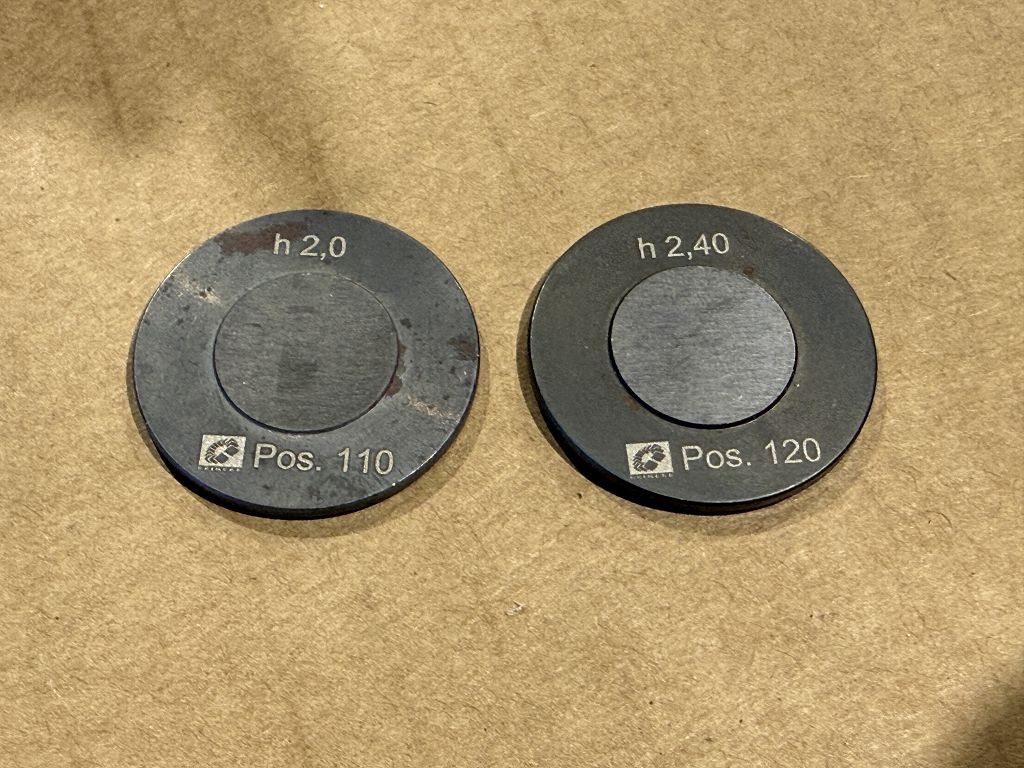

  • 2 × steel reference discs (2.00 mm & 2.40 mm – Pos. 110 / Pos. 120)

5. Additional Accessories

• 1× Spare Mahr BM50-05 measuring block

• 1× Spare Mahr P2004M inductive probe (with calibration certificate)

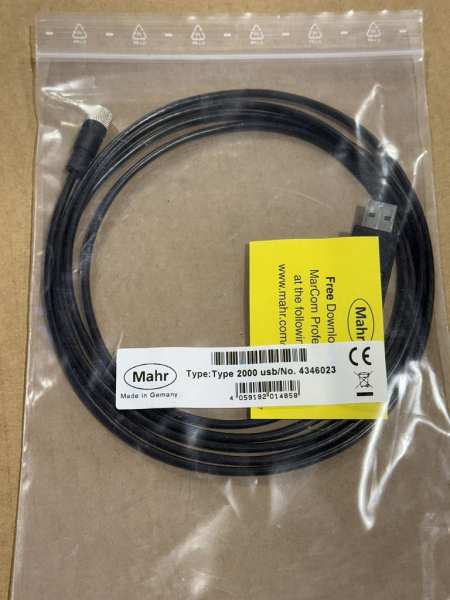

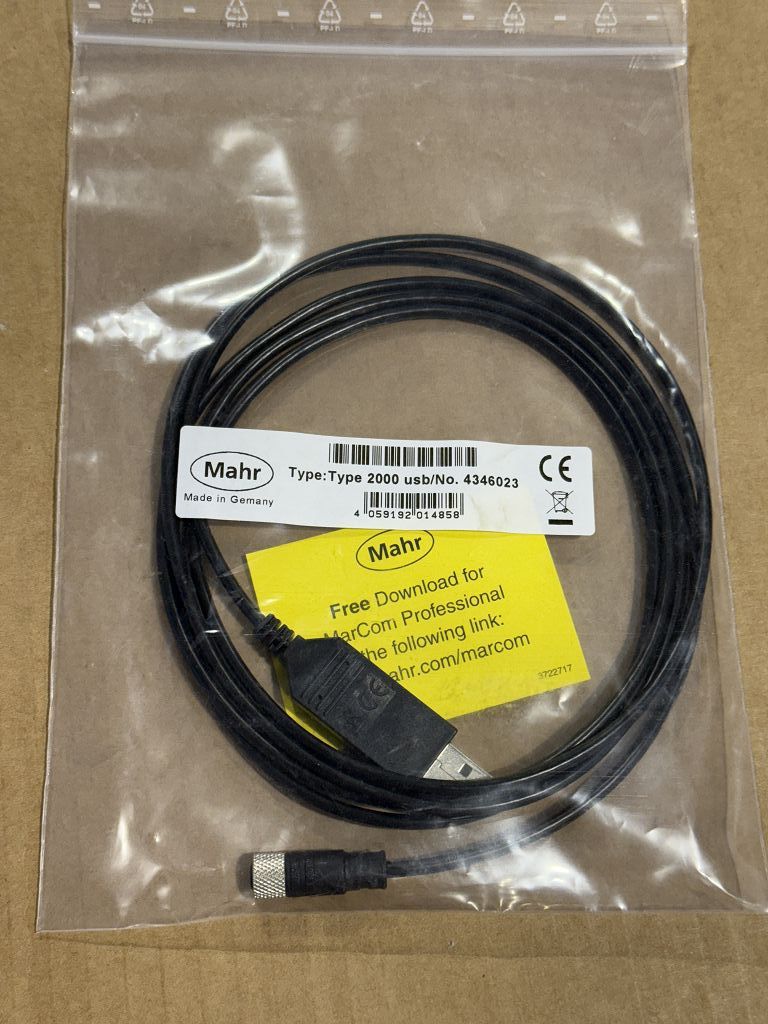

• 1× Mahr MarConnect Type 2000 USB cable (No. 4346023)

• Original power supply

• Cables, fixtures, and assembly accessories

• Full documentation & calibration certificates

Condition

• Used, fully functional

• Professionally maintained in VW quality inspection

• Clean, complete and ready for use

Special Features

• Complete industrial measuring setup

• Includes spare sensors and measuring blocks

• High measurement repeatability in µm range

• C1200 digital unit for quick and intuitive operation

• Rugged mechanical stand for stable measurements

• Suitable for continuous industrial QC operations

• Includes recent calibration documentation

• Extremely reliable, metrology-grade precision system

Typical Applications

• Industrial metrology

• Quality control (QC) and quality assurance (QA)

• Automotive industry

• Precision manufacturing

• Test and measurement laboratories

• Production line inspection

• Dimensional and tolerance measurements

Notes

• Condition: Used but fully functional

• Scope of Delivery: Complete set as shown

• Shipping: Safe packaging, international shipping available

• Installation: Plug-and-play; technical assistance available upon request
