Olympus phased array ultrasonic probe designed for industrial non-destructive testing applications. This unit is model 10L16-4.96X5-A00-P-2.5-OM with part number XAAB-0077 and serial number R3519. It is compatible with OmniScan systems and typically used in inspection and maintenance environments. Identification is clearly based on labeling and included probe test data sheet.
Manufacturer details
Olympus Europa SE & Co. KG
Wendenstraße 20
20097 Hamburg
Germany
Phone: +49 40 23773-0
Fax: +49 40 233765
E-Mail: info(at)olympus-europa.com
Technical specifications
- Manufacturer: Olympus
- Product name / type: Phased array probe / ultrasonic sensor
- Model / type: 10L16-4.96X5-A00-P-2.5-OM
- Part number (P/N): XAAB-0077
- Serial number (S/N): R3519

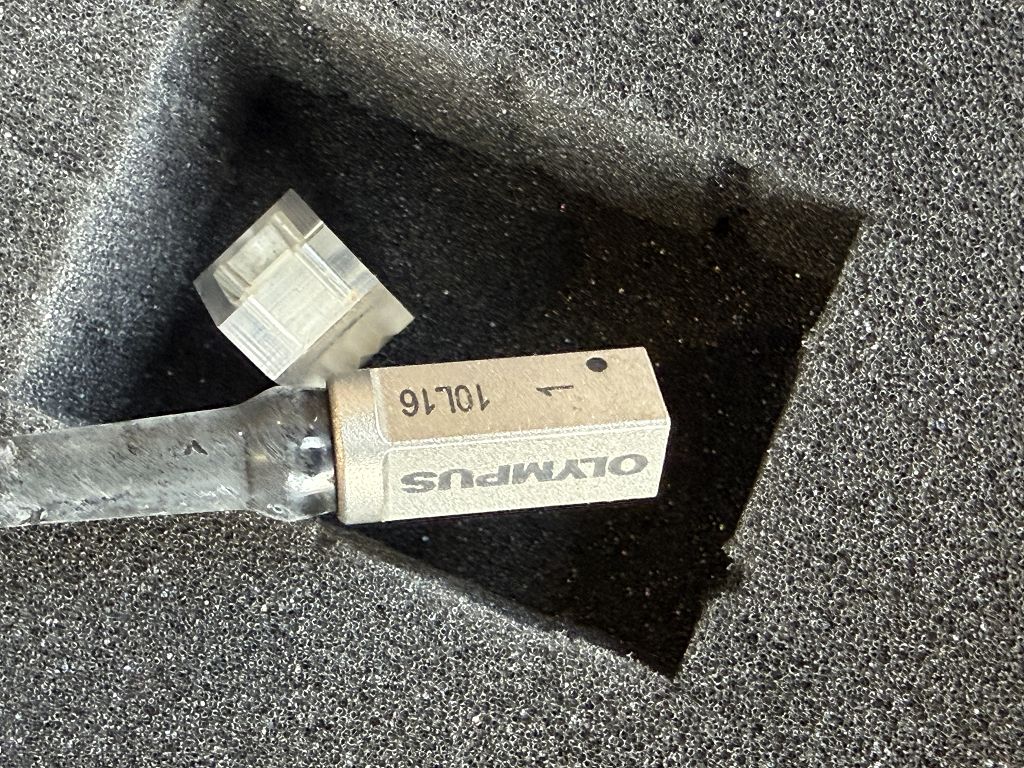

- Additional marking: Probe 10L16
- Frequency: 10.0 MHz
- Probe type: Linear array
- Element count: 16
- Active length: 4.96 mm (0.2 in)
- Elevation: 5.0 mm (0.2 in)
- Pitch: 0.31 mm (0.012 in)
- Inter element spacing: 0.08 mm (0.005 in)
- Housing: Angle beam
- Cable jacket: PVC
- Cable length: 2.5 m (8.2 ft)
- Connector type: OmniScan
- Matching medium: Rexolite
- Connector: multi-pin industrial connector (visual)
- Additional component: Plex wedge SA00-N60S
- Condition: used
Key features
- Genuine Olympus OEM probe XAAB-0077

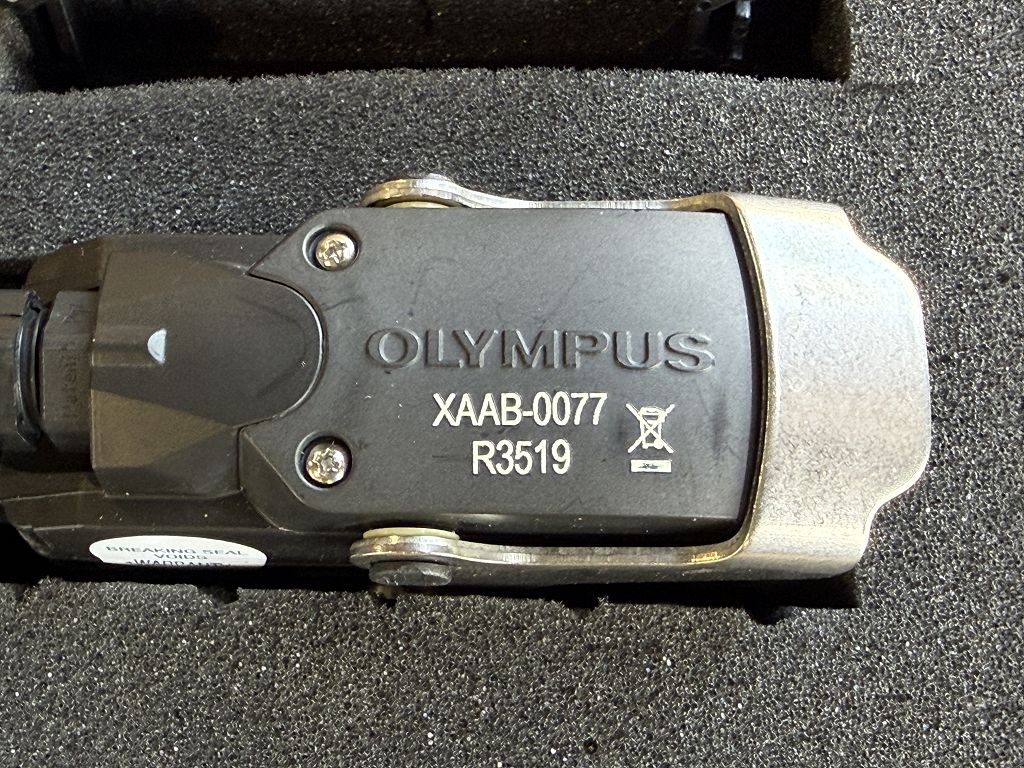

- Clear identification via P/N XAAB-0077 and S/N R3519
- Linear array probe with 16 elements
- High-frequency 10 MHz ultrasonic probe
- Industrial-grade design for NDT applications
- Includes SA00-N60S wedge

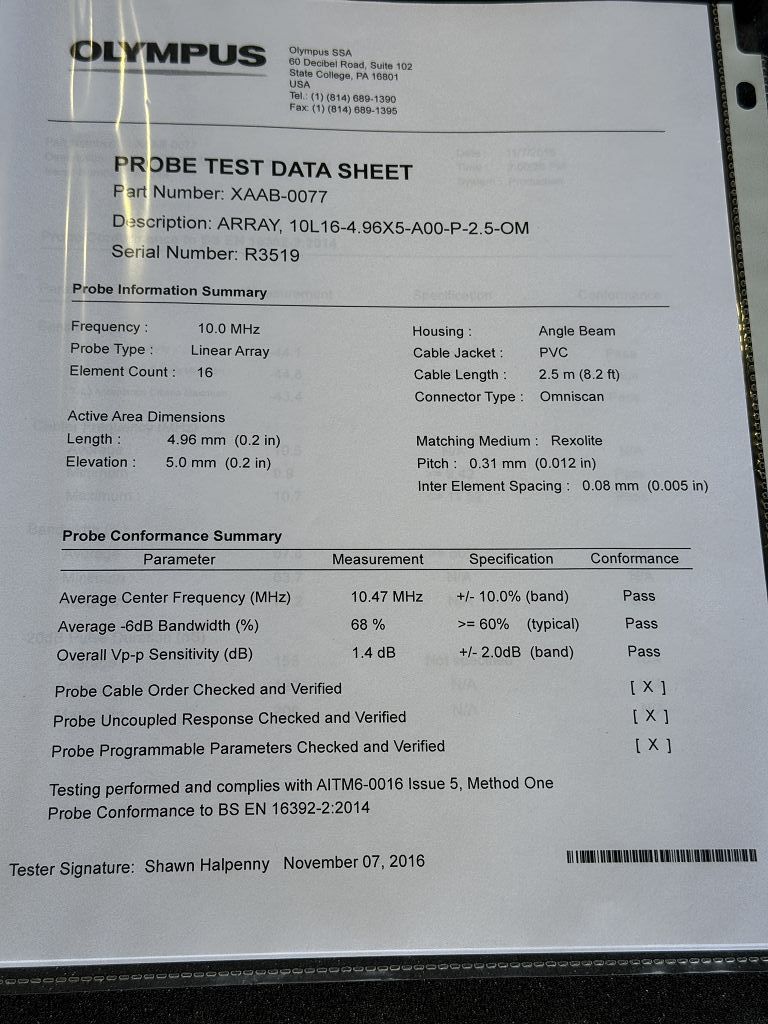

- Probe test data sheet included
- Durable construction for industrial environments
Typical applications
- Industrial manufacturing and quality control
- Production lines and automation
- Non-destructive testing (NDT)
- Maintenance and service operations
- Spare part sourcing
- Repair and replacement
- Technical inspections
- Industrial service environments
Notes
- Condition: used

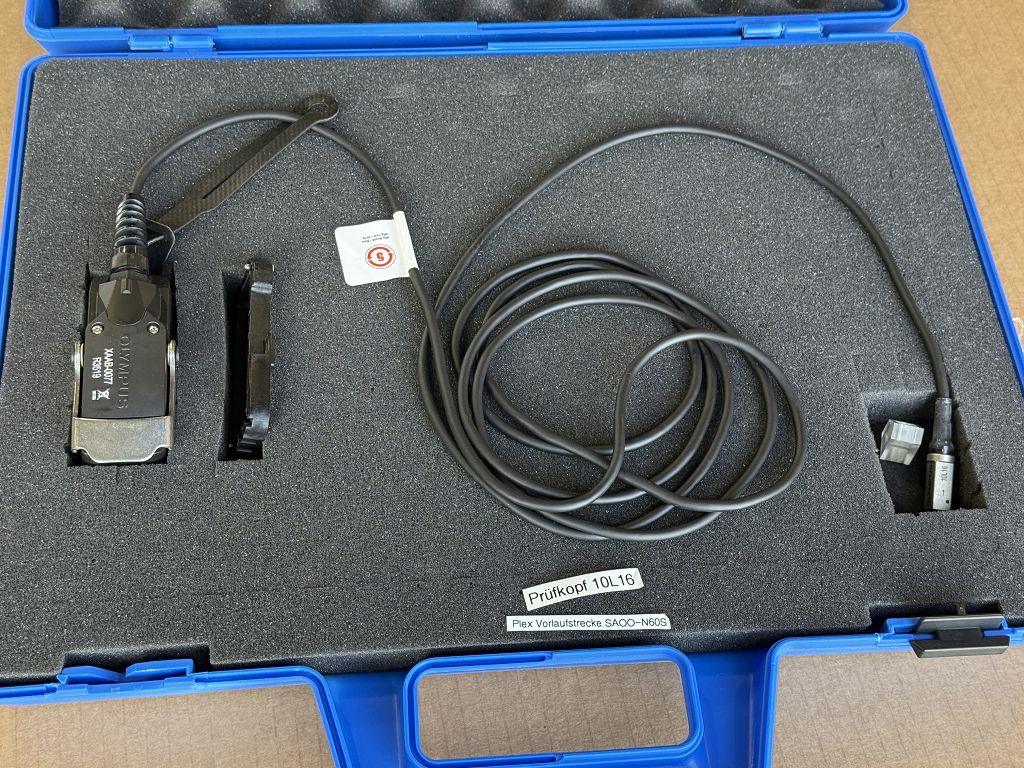

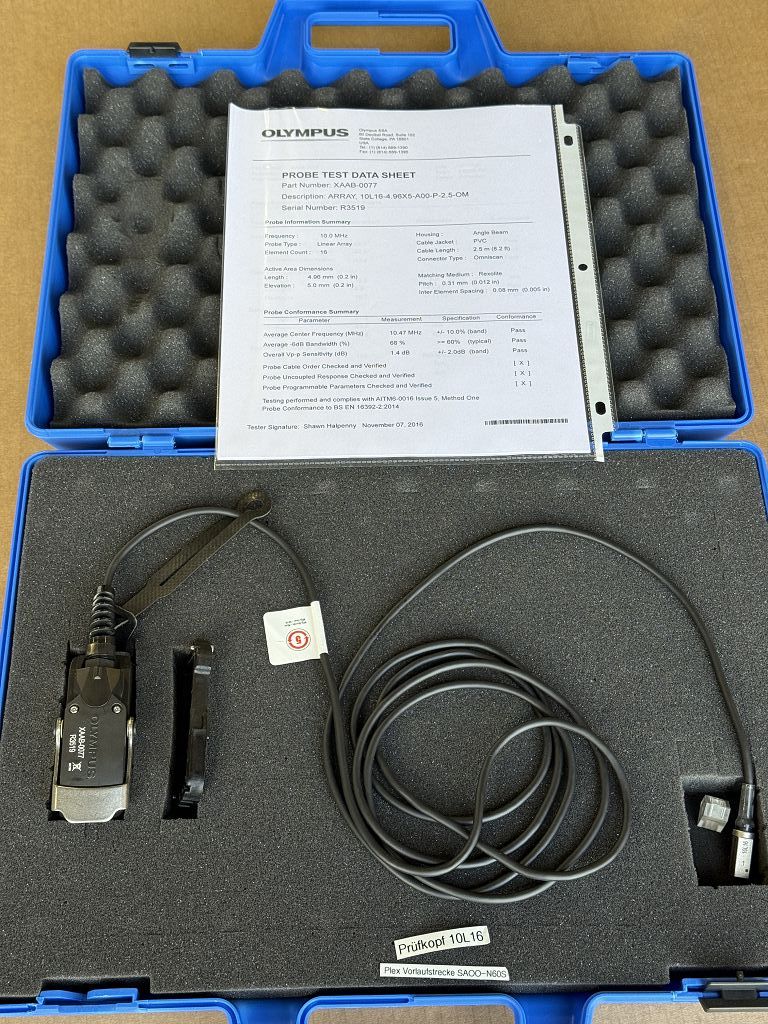

- Scope of delivery: exactly as shown in images (probe XAAB-0077, cable, SA00-N60S wedge, accessories, case, data sheet)
- Shipping: securely packed, connectors protected
- Installation / safety: installation by qualified personnel only, verify compatibility
