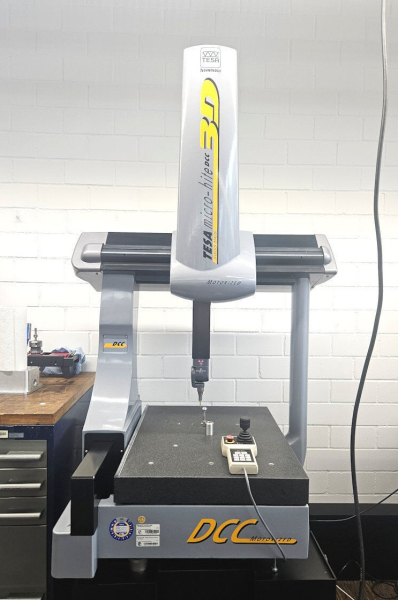

The TESA Micro-Hite 3D DCC is a high-precision, motorized 3D coordinate measuring machine made in Switzerland. It provides automated measuring routines, outstanding accuracy, and is ideal for research, quality control, and industrial manufacturing.
Manufacturer Information
TESA SA
Bugnon 38
CH-1020 Renens
Switzerland
Phone: +41 21 633 16 00
Fax: +41 21 635 75 35
E-Mail: tesainfo@ch.bnsmc.com
Website: www.tesabs.ch
Technical Specifications
Model: TESA Micro-Hite 3D DCC
Article number: 3912.161.0504
Serial number: 0612072
Year of manufacture: 2006
Measuring spans (X/Y/Z): 440 × 490 × 390 mm
Repeatability (ISO MPE-p): 3.5 µm
Measurement uncertainty (ISO MPE-e): (3 + 4 • L/1000) µm
Max. part weight: 227 kg
Overall dimensions (X/Y/Z): 1160 × 1030 × 2320 mm
Machine weight: 350 kg
Velocity: 350 mm/s
Acceleration: 1730 mm/s²
Air pressure: 4 bar (21 NL/min)
Operating temperature: 10–35 °C
Condition: used, well-maintained, from research institute
Special Features
– Motorized 3D coordinate measuring machine (Swiss Made)

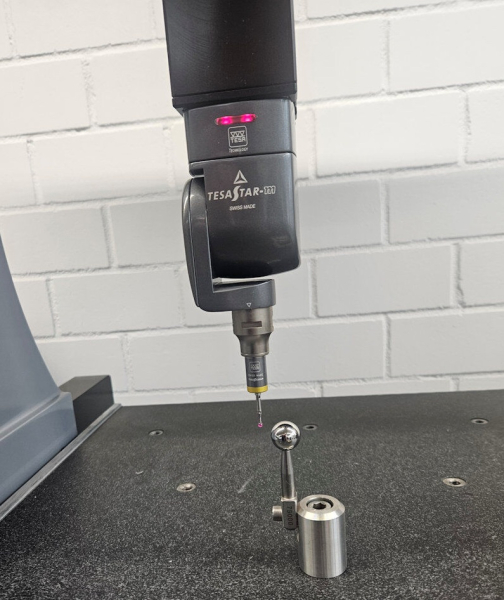

– TESASTAR-TM probe head with stylus

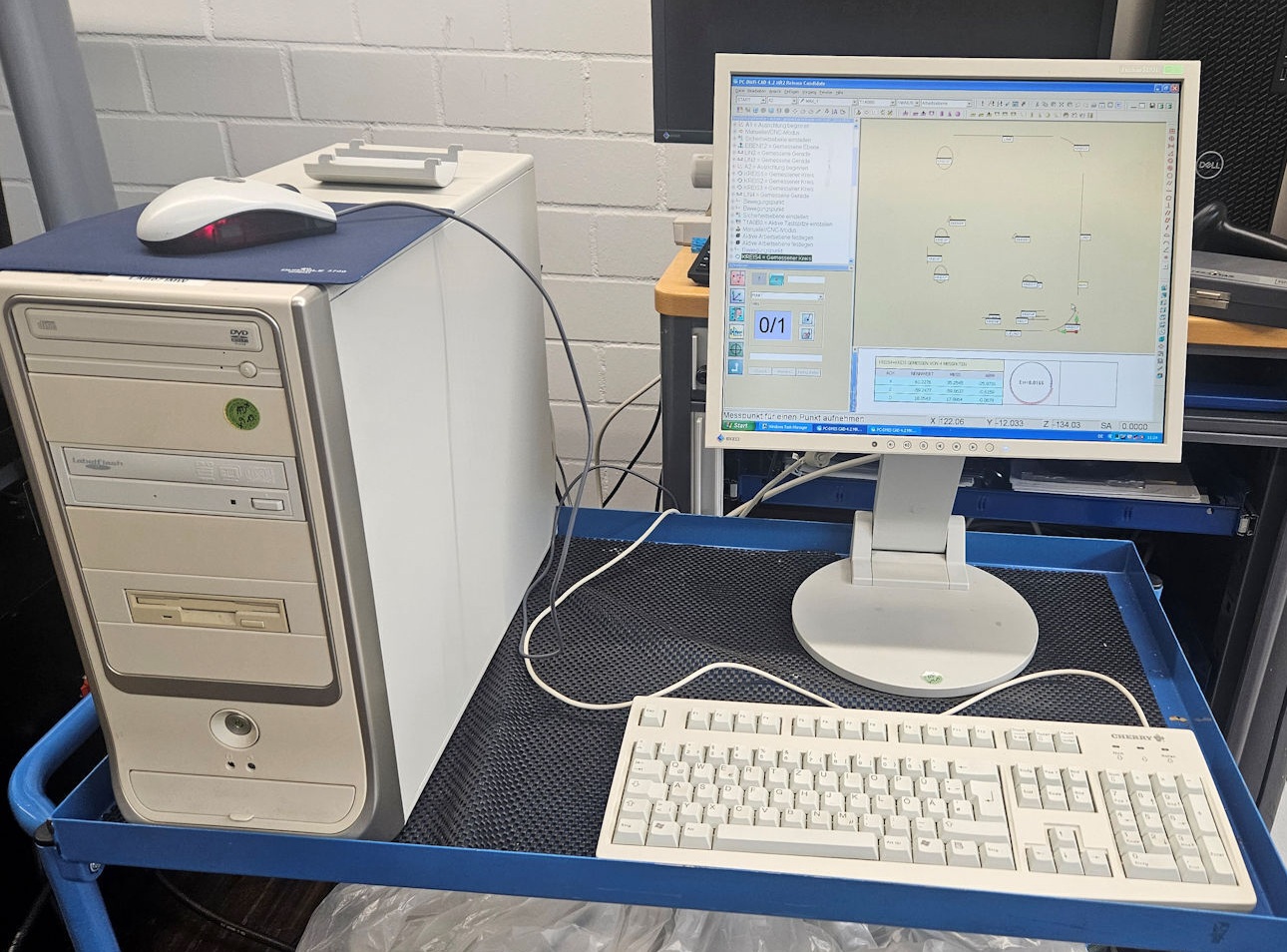

– PCDmis PRO software (incl. PC, monitor, controller)

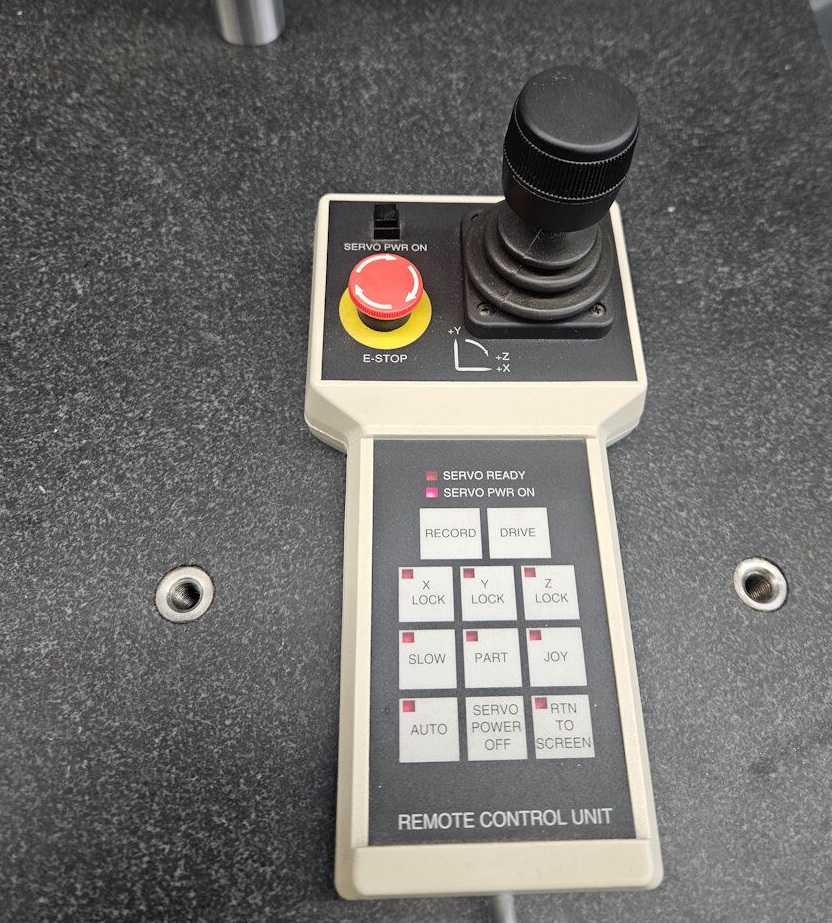

– Joystick control unit for easy handling
– Calibration sphere and accessories kit
– Solid granite measuring plate for vibration-free precision
– From scientific environment (Max Planck Institute), excellent condition
Applications
– Research and development
– Quality control in production
– Mechanical and plant engineering
– Metrology and testing laboratories
– High-precision 3D measurement for industry & science
Notes
Condition: used, technically fully functional, laboratory-maintained machine
Scope of delivery: measuring machine, TESASTAR-TM probe head, joystick control, PC with software, monitor, calibration sphere, accessories
Shipping: Shipping: Pickup preferred!!!
Installation: machine is partially disassembled on pallet – recalibration may be required after reinstallation (not included in price)
