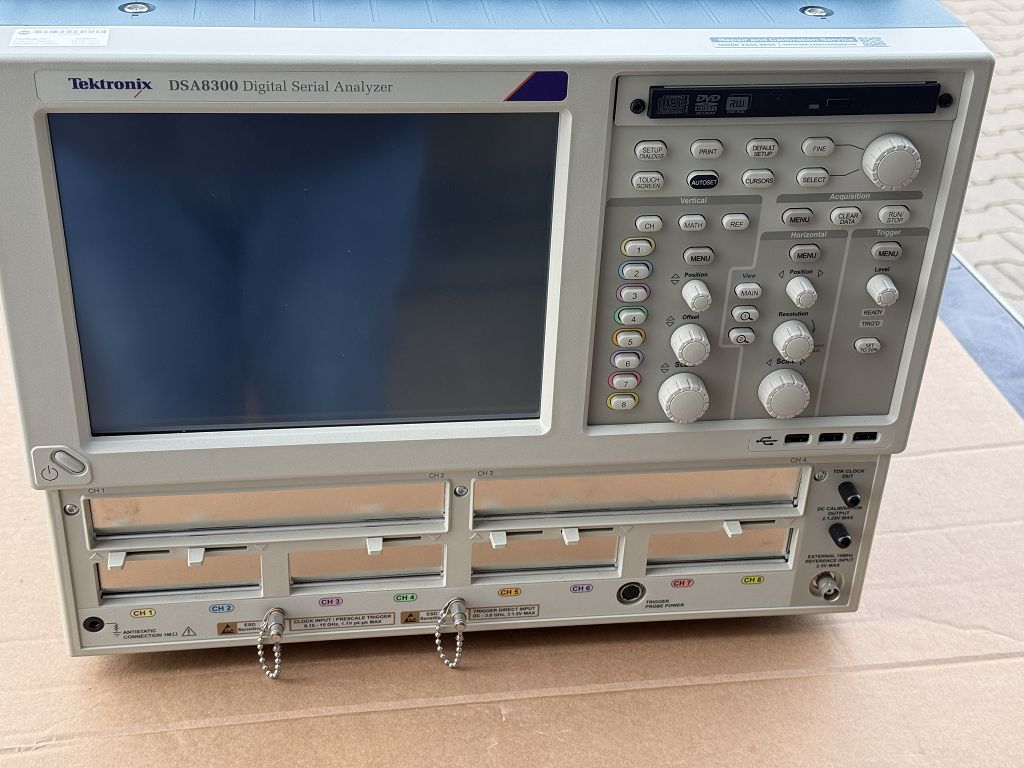

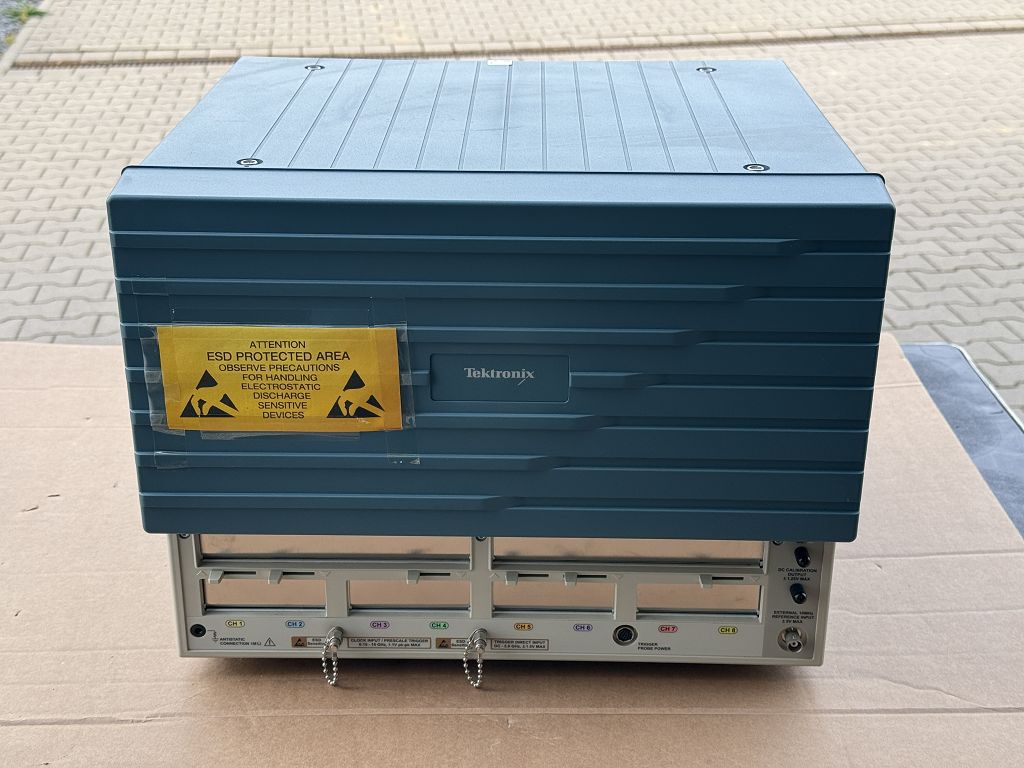

Available is a Tektronix DSA8300 Digital Serial Analyzer with extensive accessories from a test laboratory in Wolfsburg. Identified by part number DSA8300 C060016 and equipped with 80A02 EOS/ESD Protection Modules and 80E08B TDR/Sampling Modules. The package includes two complete TDR kit cases with cables and modules. According to the previous owner, the system has seen minimal use.
Manufacturer details
Tektronix, Inc.
14150 SW Karl Braun Drive
97005 Beaverton, Oregon
USA
Phone +1 800 833 9200
E-Mail info@tektronix.com
Website www.tektronix.com
Technical specifications
- Manufacturer: Tektronix
- Product name / type: Digital Serial Analyzer
- Model / type: DSA8300

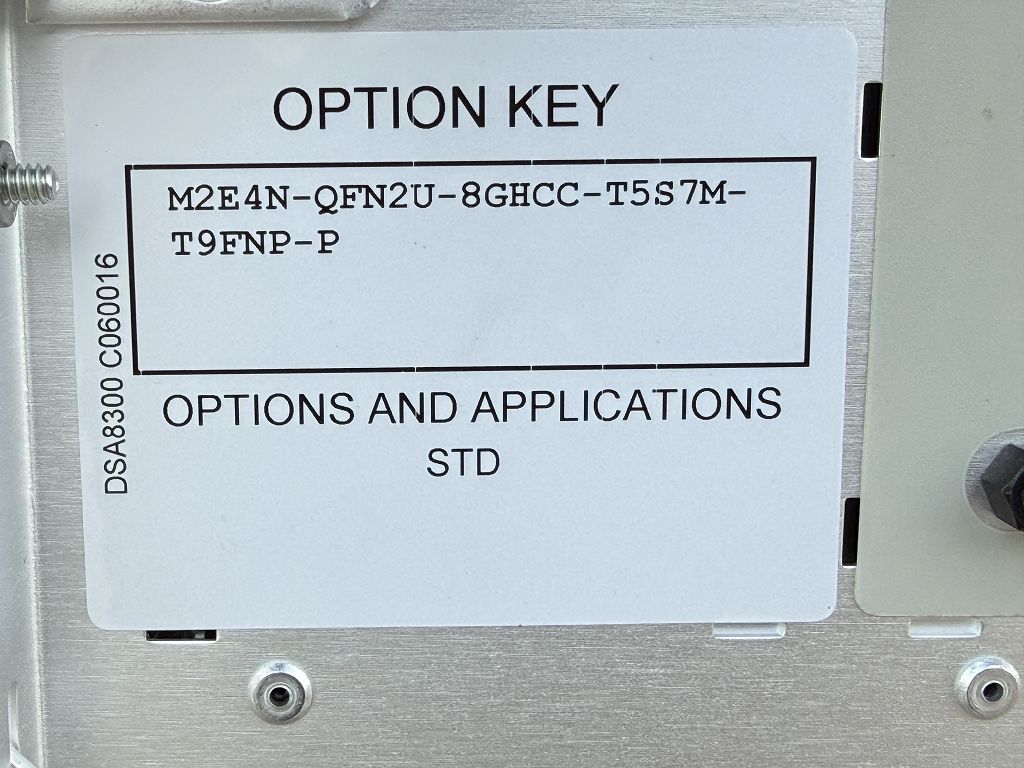

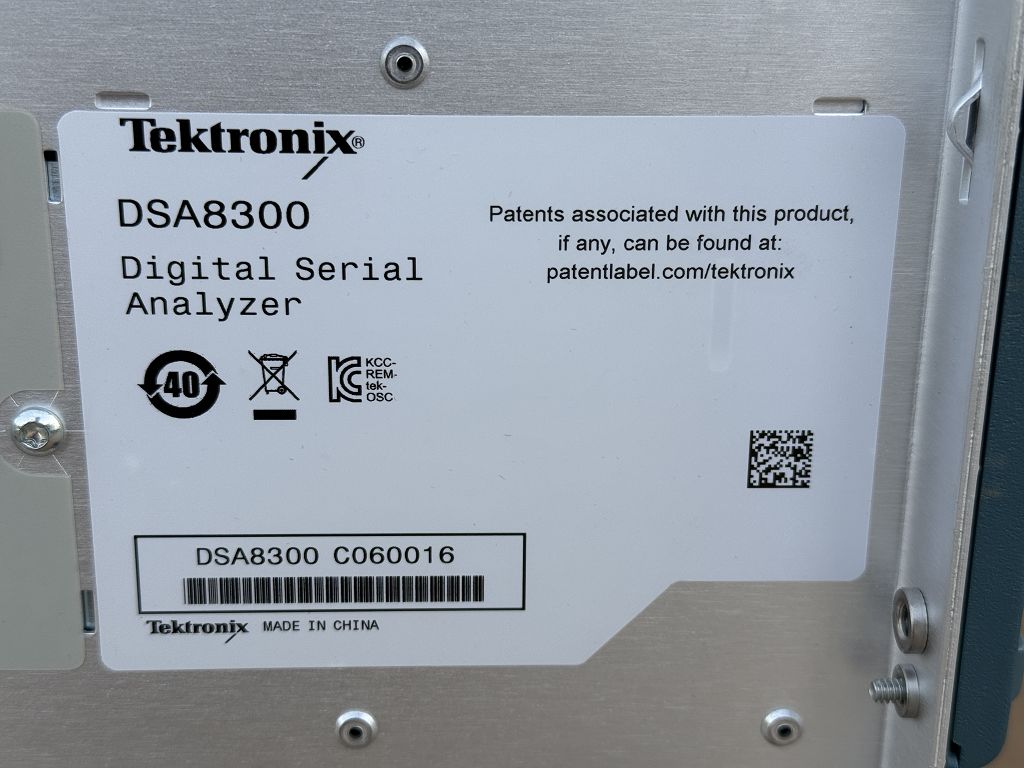

- Part number (P/N): DSA8300 C060016
- Serial number (S/N): C060016
- Modules total:

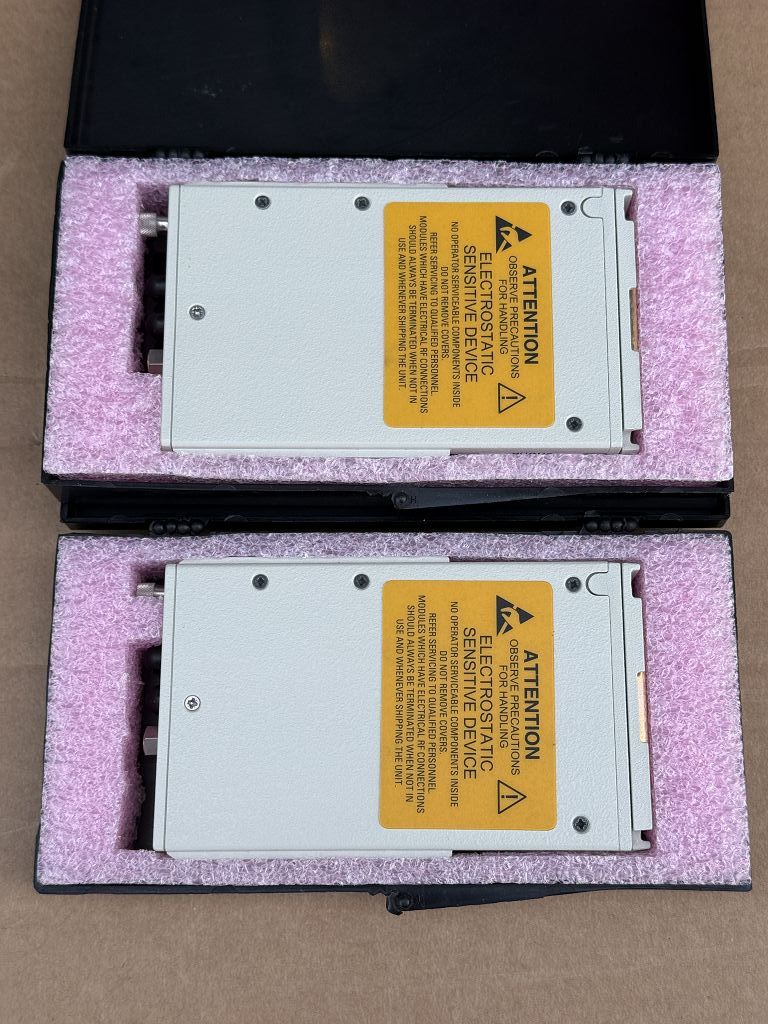

- 2× 80A02 EOS/ESD Protection Module

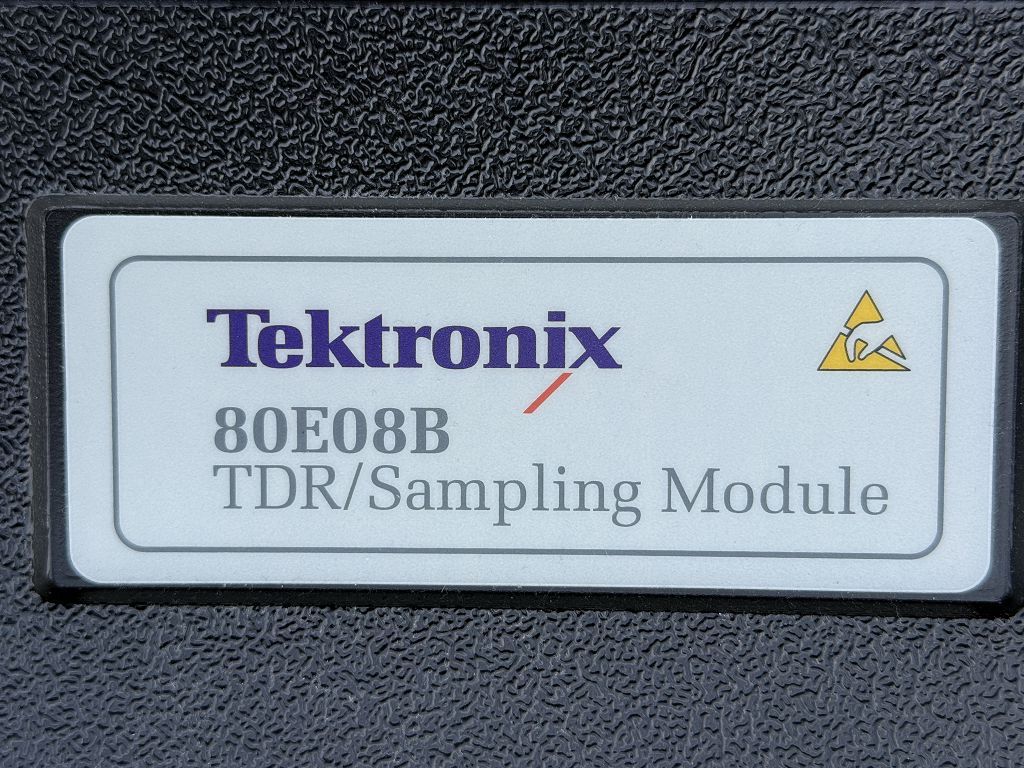

- 4× 80E08B TDR/Sampling Module
- Set configuration:

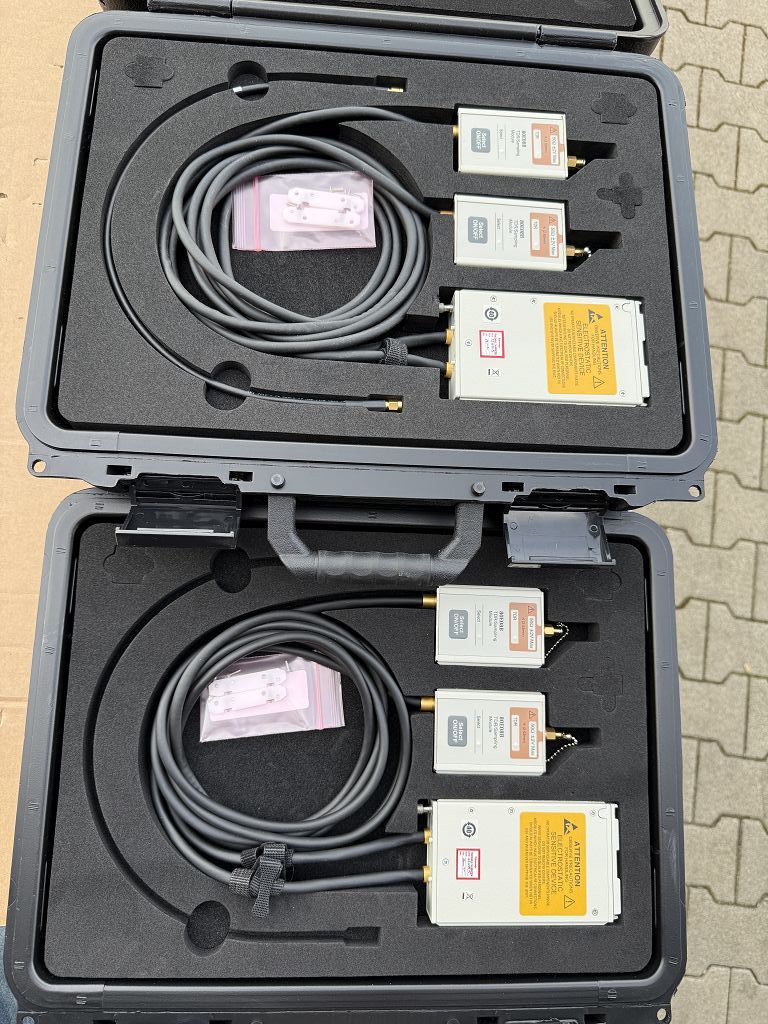

- 2× cases with 80E08B sets (including modules and cables)
- Markings:

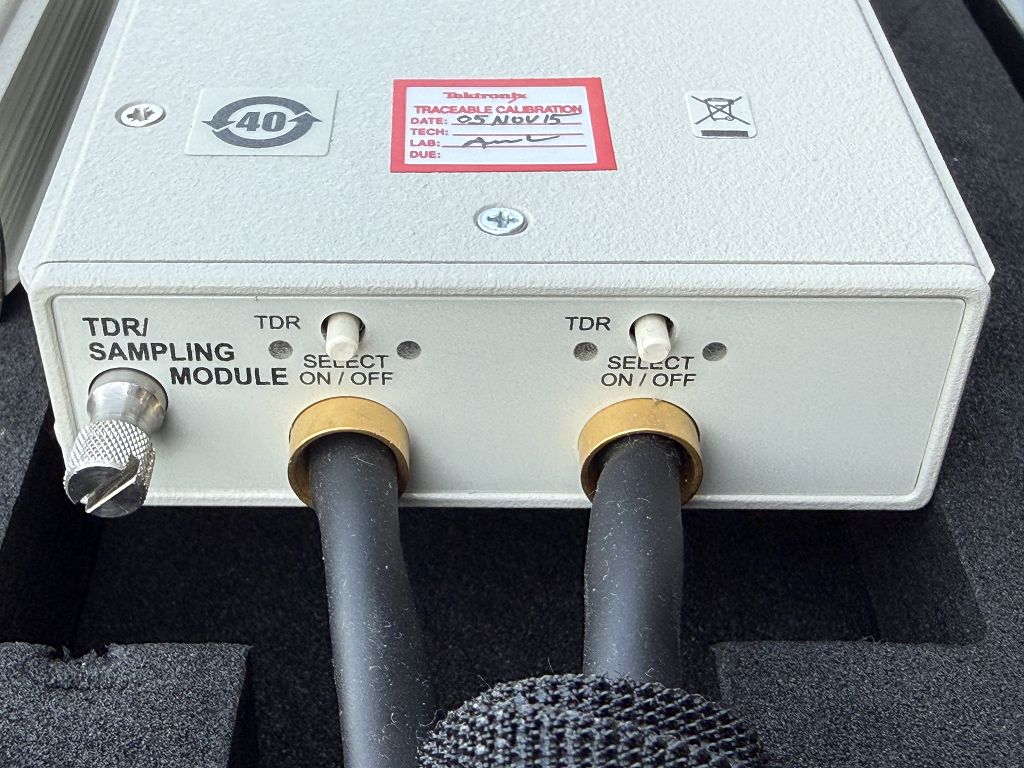

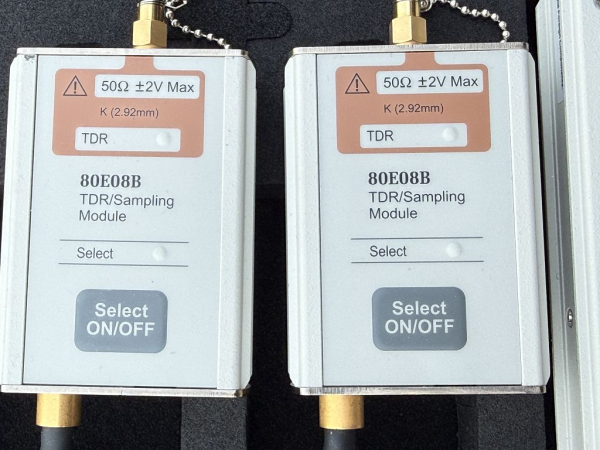

- 80E08B (50Ω ±2V Max, K (2.92 mm), TDR)

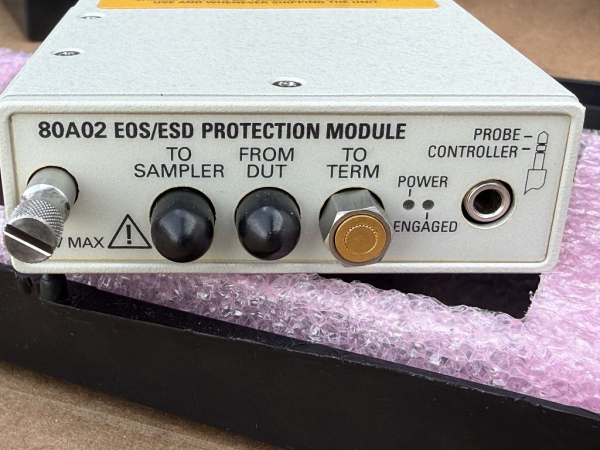

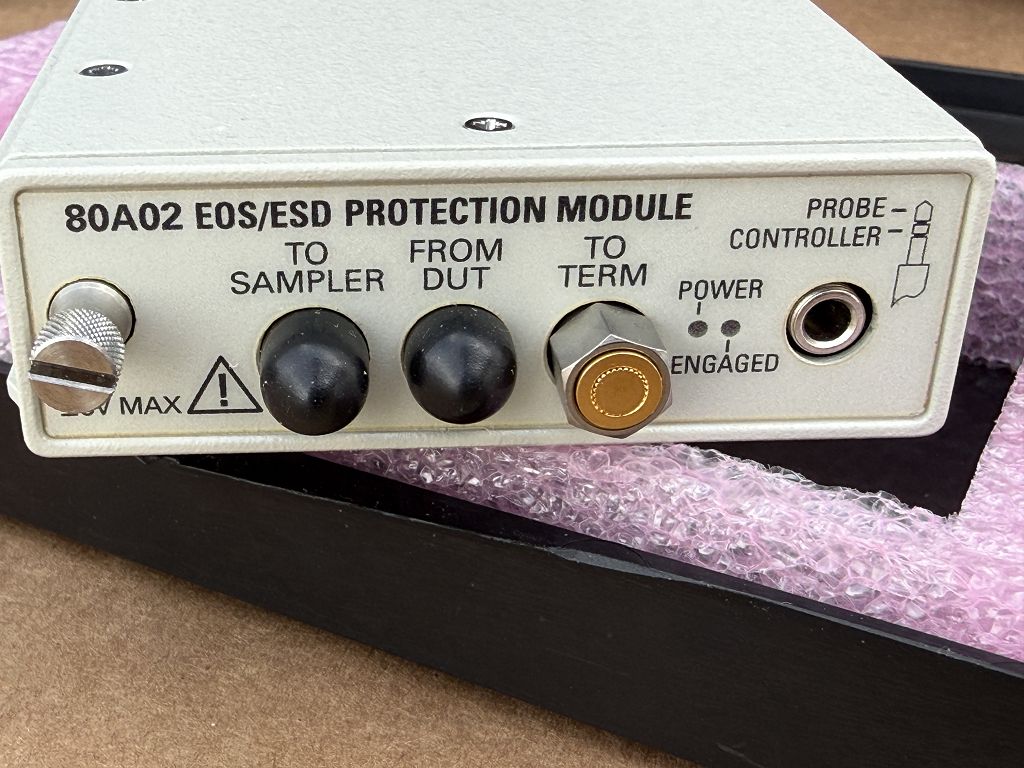

- 80A02 EOS/ESD Protection Module
- Connector types:
- K (2.92 mm) coaxial connectors
- multi-pin module interface

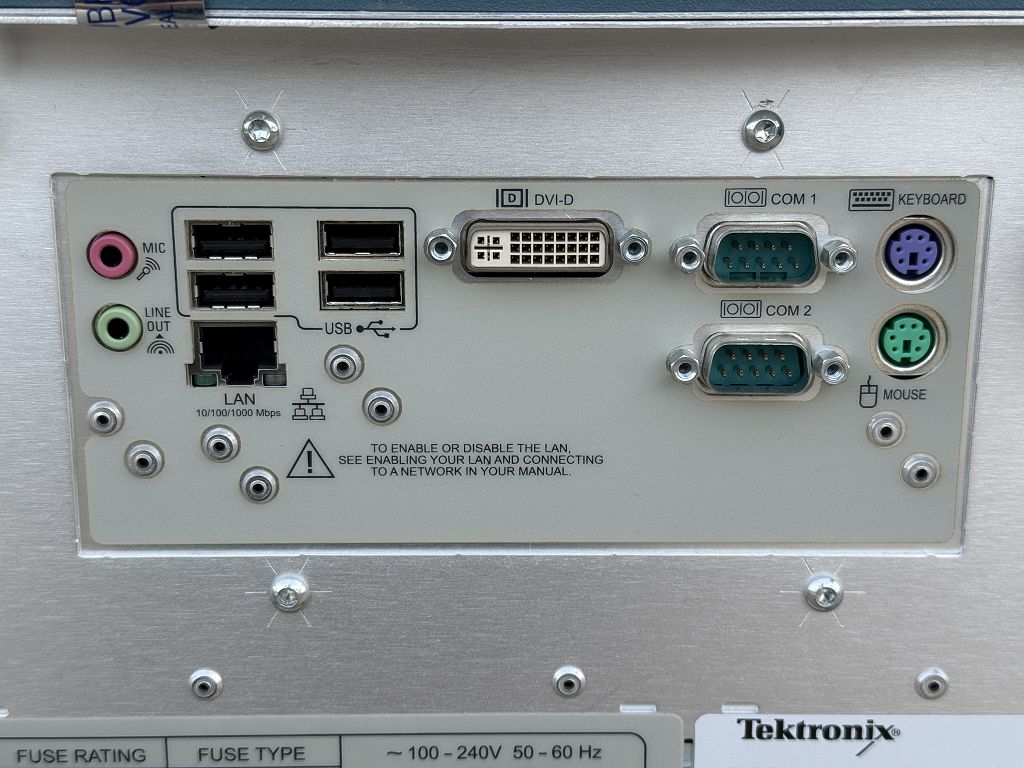

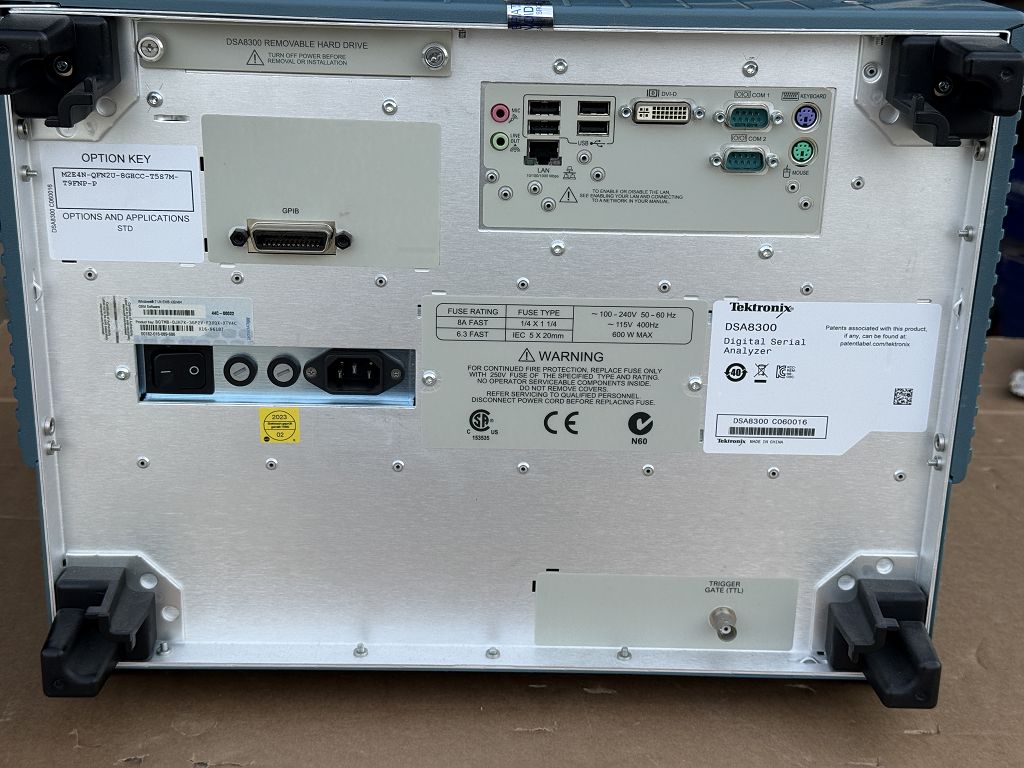

- LAN, USB, DVI-D, COM, PS/2

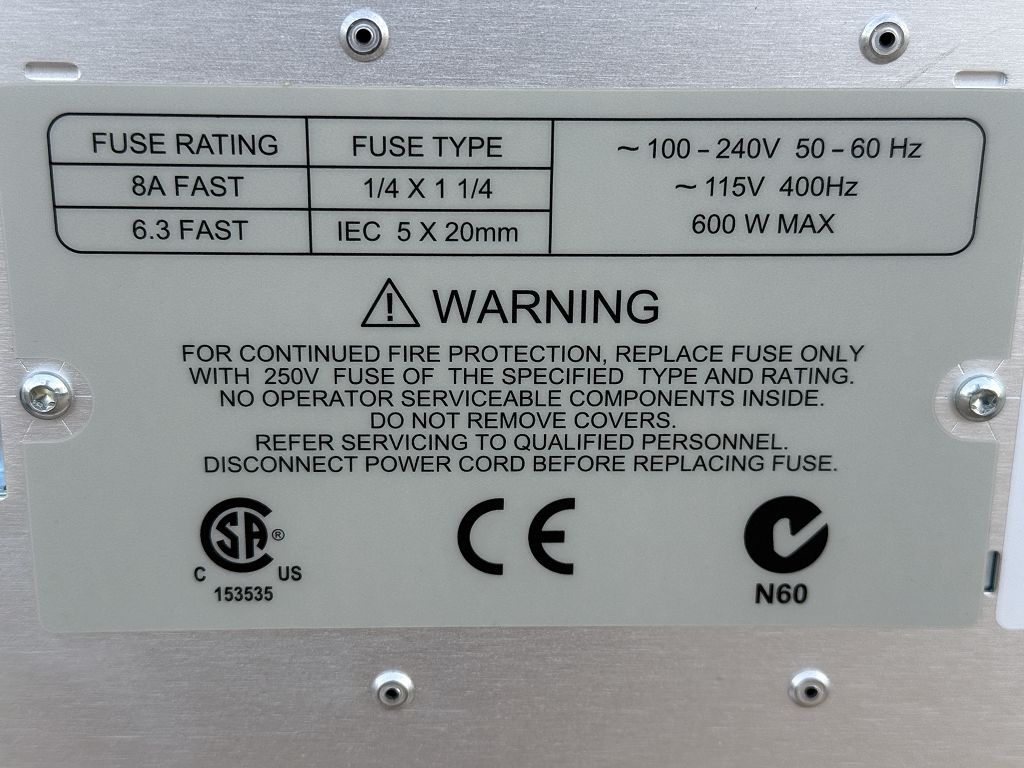

- Power supply: ~100–240 V, 50–60 Hz, 600 W max
- Condition: used, low usage according to previous owner
Key features
- genuine Tektronix DSA8300 system
- includes 2× 80A02 protection modules
- includes 4× 80E08B TDR/Sampling modules
- 2 complete TDR kit cases
- clearly identified via DSA8300 C060016
- high-frequency K (2.92 mm) interfaces
- sourced from laboratory environment
- extensive accessory package
Typical applications
- high-frequency measurement
- signal integrity analysis (TDR)
- electronics testing and development
- production testing / quality control
- laboratory environments
- maintenance and service
- spare parts sourcing
- test and measurement systems
Notes
- condition: used, low usage according to previous owner
- scope of delivery: Tektronix DSA8300 C060016, 2× 80A02 modules, 2× cases with 80E08B sets (modules and cables as shown)
- shipping: professionally packed, connectors protected
- installation: qualified personnel only, verify compatibility
